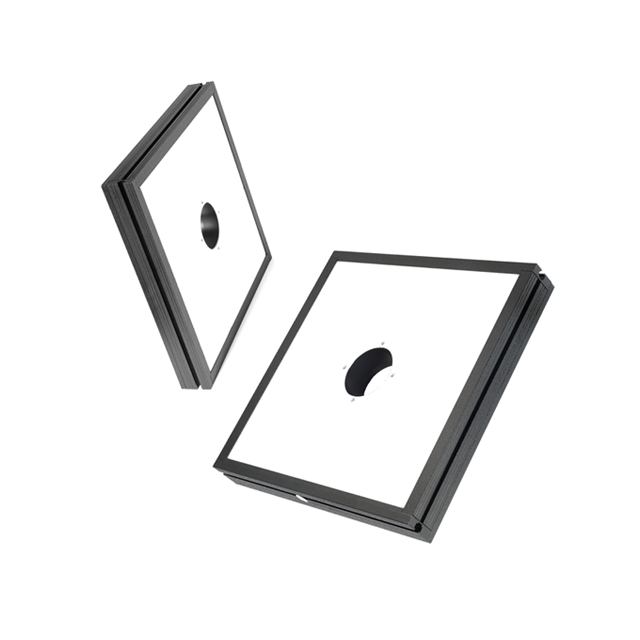

Customizable Hole Machine Vision Backlight Source

Key Features & Highlights

Achieving flawless quality control requires illumination that leaves no room for error. Our aperture backlighting solutions are crafted to provide your inspection systems with the ultimate visual clarity, ensuring every component passing through your line meets the strictest dimensional tolerances.

• Flawless Shadow Elimination: By achieving over 99% illuminance uniformity, the light source eradicates dark spots and glare, ensuring your cameras capture the true geometry of every target without visual distortion.

• Thermal Management Excellence: The premium aluminum alloy housing acts as a highly efficient heat sink, keeping the unit cool during continuous 24/7 operation and preserving the structural integrity of the internal LED chips.

• Dynamic Illumination Control: Multi-level brightness adjustment capabilities allow your technicians to fine-tune the light intensity on the fly, instantly adapting to different material reflectivities, thicknesses, and aperture sizes.

• Streamlined System Integration: The modular and compact architecture significantly reduces installation downtime, allowing your engineering teams to deploy or upgrade vision systems with minimal disruption to ongoing factory operations.

• Unwavering Output Consistency: With a light decay rate of less than 5% over its extensive lifespan, your inspection parameters remain completely stable, eliminating the need for frequent software recalibrations or hardware replacements.

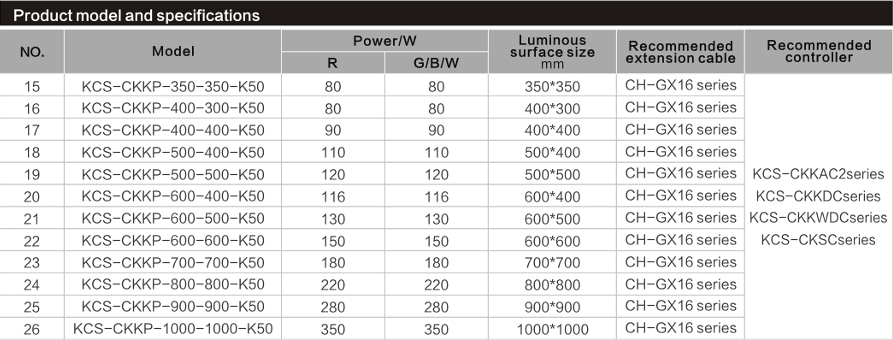

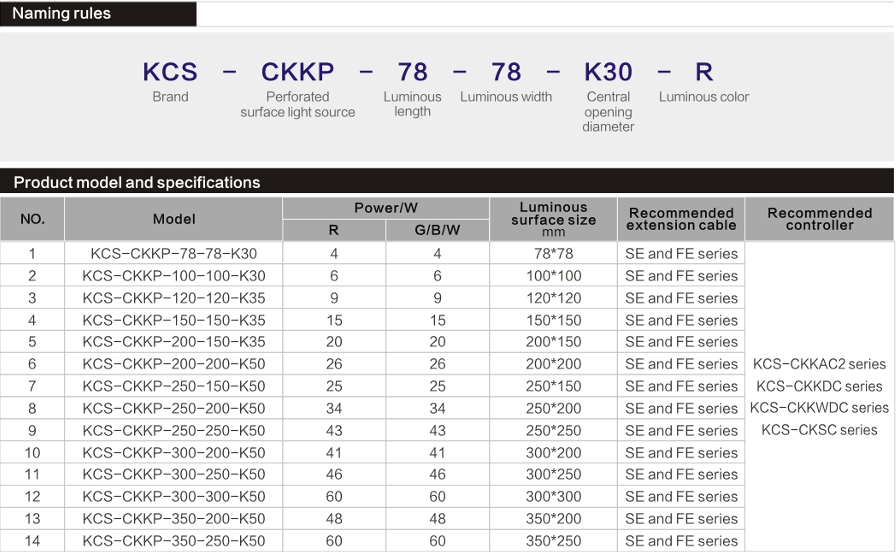

Model List

Core Capabilities & Industrial Applications

To meet the rigorous demands of modern manufacturing, this illumination unit is built around five core dimensions that directly enhance your operational capabilities and inspection reliability.

• Optical Performance & Precision: At the heart of this unit is a high-brightness LED source delivering >99% illuminance uniformity. This completely neutralizes shadows and reflections. The precise aperture light transmission design significantly elevates the absolute accuracy of your machine vision systems, making edge detection, micro-defect recognition, and dimensional measurements utterly flawless.

• Customization & Wavelength Options: We understand that no two inspection lines are identical. We offer comprehensive customization covering dimensions, aperture shapes, and a full spectrum of wavelengths (Red, Green, Blue, White, IR, UV). Coupled with multi-level brightness control, this ensures extreme application flexibility for diverse materials and complex industrial lighting scenarios.

• Durability & Stability: Built for the harshest manufacturing floors, this unit boasts an operational lifespan exceeding 50,000 hours with a remarkably low light decay rate of <5%. The superior heat dissipation structure ensures rock-solid stability during high-intensity, continuous operation, drastically slashing your long-term maintenance expenditures and preventing unexpected downtime.

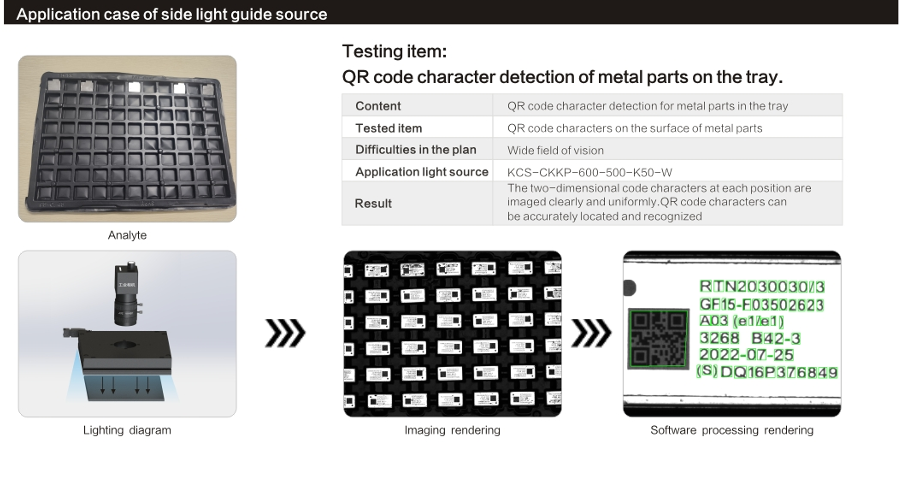

• Application Compatibility: Featuring a compact and modular architecture, this backlight seamlessly integrates with an array of industrial cameras, microscopes, and AOI (Automated Optical Inspection) systems. It is the definitive lighting choice for critical applications such as electronic component (PCB, chip) hole positioning, mechanical parts diameter measurement, and optical assembly alignment.

• Supply Chain & Service: As a dedicated supplier, we minimize your procurement and prototyping risks. We offer an extremely accessible MOQ of just 1 piece, rapid delivery timelines (3-5 working days for standard units, 7-10 for custom builds), OEM/ODM manufacturing support, CE certification, and a comprehensive 1-year warranty for free repair or replacement, ensuring your supply chain remains uninterrupted.

FAQ

Navigating the technical specifications of machine vision lighting can be complex. Below are detailed answers to the most common inquiries we receive from procurement and engineering professionals regarding our illumination systems.

• What is the minimum order quantity (MOQ) for the Customizable Hole Backlight?

  We maintain a highly flexible production model, allowing a minimum order quantity of just 1 piece. This enables you to acquire exactly what you need for prototyping or small-scale testing before committing to larger volume orders.

• Can the wavelength and dimensions be tailored to our specific inspection materials?

  Absolutely. We provide extensive customization services. You can specify the exact color wavelength (including specialized IR and UV spectrums), light source type, and physical dimensions to perfectly match the absorption and reflection characteristics of your target materials.

• How does the thermal management affect the lifespan of the LED source?

  The unit utilizes a premium aluminum alloy housing designed for optimal thermal dissipation. This prevents heat accumulation during continuous operation, ensuring the LED chips maintain a lifespan of over 50,000 hours with less than a 5% decay in light output, securing long-term inspection stability.

• What are the expected lead times for both standard and custom lighting units?

  Efficiency in the supply chain is a priority. Standard configurations are typically dispatched within 3 to 5 working days. For units requiring bespoke dimensions or specialized wavelengths, the engineering and production cycle requires 7 to 10 working days.

• Are these lighting solutions certified for international industrial integration?

  Yes, all our machine vision lights come with CE certification, ensuring they meet stringent safety, health, and environmental protection requirements for seamless integration into global manufacturing facilities.

• What level of warranty coverage is provided with these illumination systems?

  We stand behind the reliability of our products with a comprehensive 1-year warranty. Should any malfunction occur due to non-human factors within this period, we provide prompt and free repair or replacement services to minimize your operational downtime.
