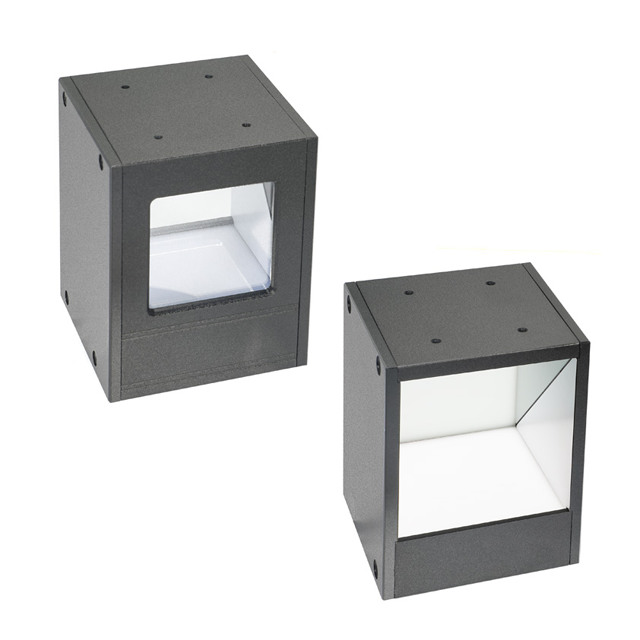

Coaxial Light
Coaxial Light Solutions for Machine Vision Inspection
Coaxial Light is essential in machine vision lighting systems, delivering uniform illumination for reflective and flat surfaces. It directs light along the same optical axis as the camera, effectively eliminating shadows and glare. At KCS (Guangdong Shunshangxin Photoelectric Technology Co., Ltd.), we combine in-house R&D with advanced production to provide reliable coaxial illumination solutions for automated inspection environments.
Our Coaxial Light for Inspection products meet the demanding requirements of precision imaging and complement our full range of machine vision lighting solutions for industrial automation.
Advantages of KCS Coaxial Lighting
KCS Coaxial Lights provide high uniformity and stable illumination, ensuring clear imaging even on highly reflective materials. These LED-based lights feature a compact structure, long service life, and excellent reflection control. Key benefits include:
Superior light uniformity and reflection management
Durable, compact design for easy system integration
Custom wavelength and brightness options
Fast delivery with OEM/ODM customization
With over ten years of experience, KCS delivers dependable coaxial lighting solutions backed by complete in-house production and strict quality control.
Coaxial Light Models and Configurations
We offer a variety of Coaxial Light models tailored for different machine vision applications. Options include standard LED models, high-brightness versions, and compact designs for limited spaces. Each model ensures consistent illumination and low heat output.
| Model Type | Main Features | Recommended Use |
|---|---|---|
| High-Brightness Coaxial Light | Enhanced intensity for low-reflectivity surfaces | Precision metal or PCB inspection |

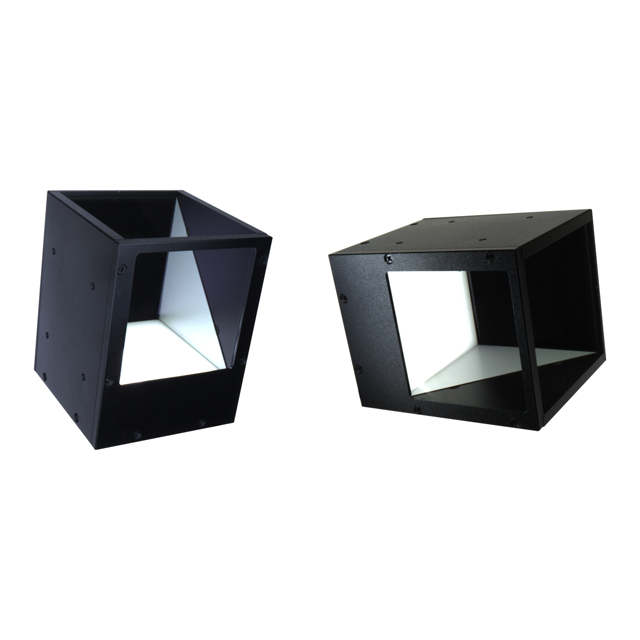

| Corner Coaxial Light | Compact design for space-limited setups | Electronics and component inspection |
| Standard LED Coaxial Light | Balanced illumination for general use | Flat surface and reflective object imaging |
All models are available in multiple wavelengths and housing materials to suit specific inspection needs.
Applications of Coaxial Lighting in Industrial Inspection
Coaxial Lighting is widely used in machine vision systems that require shadow-free imaging of reflective or smooth surfaces. Common applications include:
PCB and semiconductor inspection
Glass and display defect detection
Metal surface and precision component inspection
Marking and engraving verification
By integrating our coaxial illumination with high-resolution cameras and lenses, KCS enhances image clarity and consistency across diverse inspection tasks.
How to Select the Right Coaxial Light
Choosing the right Coaxial Light depends on surface reflectivity, inspection area, and camera configuration. The table below provides a quick selection guide:
| Selection Factor | Recommendation |
|---|---|
| Inspection Surface | Use high-brightness coaxial lighting for low-reflectivity materials |
| Working Distance | Match light size and beam angle with the camera’s field of view |
| Color/Wavelength | Select wavelength based on material color and contrast requirements |
| Brightness Control | Pair with KCS light source controllers for adjustable intensity |
For advanced control and synchronization, we recommend integrating the coaxial light with our dedicated light source controllers for precise brightness and timing adjustment.
Why Choose KCS as Your Coaxial Light Manufacturer
As a trusted Coaxial Light manufacturer in China, KCS specializes in machine vision lighting backed by independent R&D and modern production facilities. Our advantages include:
Comprehensive product range covering all major machine vision lighting types
Fast customization within 3–7 days for unique inspection needs
OEM/ODM services with flexible design and production support
Reliable global supply and technical assistance for integrators and automation companies
We combine engineering expertise with responsive service, making KCS a dependable machine vision lighting supplier for industrial automation and inspection projects. Contact our factory today to request a quote or discuss your custom Coaxial Light requirements.
Frequently Asked Questions about Coaxial Lights
Q1: What is a coaxial light used for in machine vision?
A1: Coaxial lights provide uniform illumination for reflective or flat surfaces, enabling clear and consistent imaging in inspection systems.
Q2: How does a coaxial light differ from a ring light?
A2: A coaxial light directs illumination through a beam splitter for even lighting, while a ring light projects light around the lens at an angle.
Q3: Can KCS customize coaxial lights for specific applications?
A3: Yes, we offer customization for size, wavelength, and brightness to meet specialized inspection requirements.
Q4: What industries commonly use coaxial lights?
A4: Coaxial lights are widely used in electronics, semiconductor, glass, and metal inspection industries.
Q5: How do I control the brightness of a coaxial light?
A5: Our coaxial lights can be paired with KCS light source controllers for precise brightness and timing control, ensuring optimal performance during inspection.
