Industrial Machine Vision LED Backlight Source

Key Features & Highlights

Elevating your automated inspection capabilities requires lighting that performs flawlessly under relentless operational demands. Our machine vision backlight is meticulously engineered to provide exactly that, transforming complex visual data into clear, actionable insights for your optical sensors.

• Flawless Uniformity: The densely packed LED array at the base guarantees an exceptionally even distribution of light, completely eradicating shadows and edge-darkening that could compromise camera accuracy.

• Energy-Optimized Architecture: Utilizing next-generation LED technology, this unit drastically slashes power consumption while delivering intense, penetrating illumination, keeping your operational overhead exceptionally low.

• Thermal Management: The sleek, heat-dissipating chassis ensures the unit remains cool to the touch even during continuous round-the-clock operation, preventing thermal degradation of the diodes.

• Instant-On Responsiveness: Achieves maximum brightness in milliseconds, perfectly synchronizing with high-speed strobe controllers and fast-framing industrial cameras without any perceptible flickering.

Optical Performance & Lighting Quality

Achieving flawless defect detection hinges entirely on the quality of the illumination feeding your optical sensors. This backlight is specifically engineered to deliver an intensely uniform, shadow-free luminescence that creates the stark contrast necessary for high-precision machine vision tasks.

• Unmatched Image Contrast: By projecting a perfectly even field of light, it turns microscopic scratches, subtle stains, and dimensional anomalies into sharp, undeniable silhouettes that inspection algorithms can easily process.

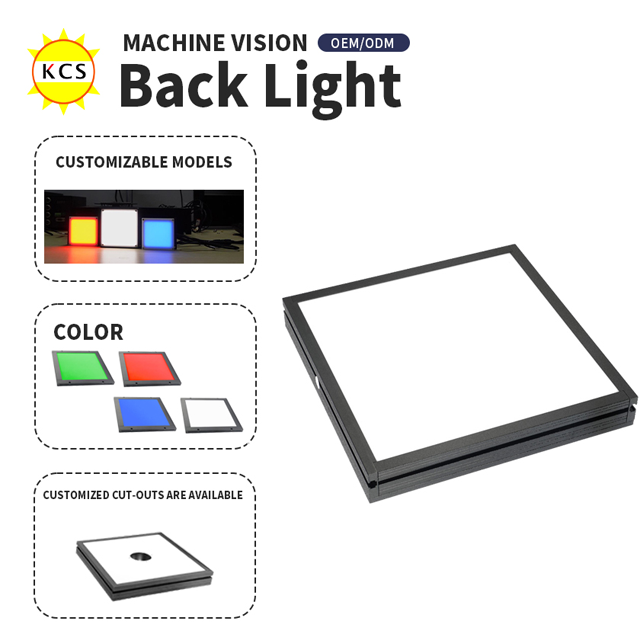

• Comprehensive Spectrum Options: Available across a wide spectrum including Red, Green, Blue, White, Infrared, and Ultraviolet, allowing you to precisely match the wavelength to the specific absorption or reflection characteristics of your target material.

• Zero-Glare Diffusion: The premium diffuser plate softens the intense LED output, eliminating harsh glare that could blind sensitive imaging equipment during delicate surface inspections.

• Stable Luminous Flux: Maintains a rock-steady output without micro-fluctuations, ensuring that your automated systems receive consistent image data batch after batch, shift after shift.

Customization & Equipment Compatibility

No two production lines are exactly alike, which is why rigidity in equipment design is the enemy of efficiency. We offer comprehensive structural and optical customization to ensure this lighting solution embeds flawlessly into your existing automation architecture.

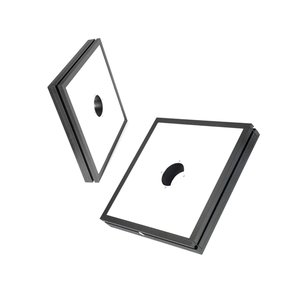

• Tailored Form Factors: Whether you require a compact square for micro-electronics or a massive rectangular panel for flat-screen testing, the dimensions can be precisely machined to your exact spatial constraints.

• Strategic Camera Openings: The luminous surface can be custom-drilled with precise apertures, allowing industrial lenses to shoot directly through the light source for perfectly aligned coaxial-style backlighting.

• Universal Mounting: Designed with adaptable mounting points that secure firmly to standard industrial frames, robotic arms, or specialized conveyor enclosures.

• Plug-and-Play Integration: Seamlessly interfaces with a wide array of vision controllers and triggering mechanisms, ensuring your engineering team spends less time on setup and more time on optimization.

Industrial Durability & Environmental Adaptability

Factory floors are unforgiving environments where delicate equipment quickly perishes. This machine vision backlight is forged with industrial-grade resilience, built to withstand the relentless mechanical and environmental stresses of high-volume manufacturing facilities.

• Vibration-Resistant Chassis: The robust outer casing and securely soldered internal components are engineered to absorb the continuous mechanical shocks generated by heavy machinery and rapid conveyors.

• Extended Operational Lifespan: Rated for an astonishing 10,000 hours of continuous use with minimal brightness decay (less than 30%), drastically extending the intervals between maintenance cycles and reducing replacement costs.

• Climate-Tolerant Engineering: Capable of operating flawlessly in temperatures ranging from 0 to 40°C, and safely stored between -20 to 60°C, making it suitable for both chilled processing rooms and hot manufacturing plants.

• Moisture and Dust Defense: The tightly sealed housing prevents the ingress of factory dust and non-condensing humidity (20~80%), protecting the sensitive optical arrays from contamination and short circuits.

Quality Certifications & QC Standards

When equipping a massive production facility, reliability is not a luxury; it is a strict prerequisite. We maintain an uncompromising stance on quality control, ensuring that every single lighting unit meets rigorous international standards before it ever reaches your loading dock.

• CE Certified Compliance: Fully certified to meet stringent European safety, health, and environmental protection requirements, guaranteeing safe deployment across global facilities.

• 100% Factory Inspection: Every unit undergoes a grueling series of automated and manual tests—including thermal stress, luminous uniformity, and electrical stability—ensuring absolute perfection out of the box.

• Consistent Batch Quality: Our tightly controlled manufacturing tolerances mean that whether you order ten units or ten thousand, the optical performance remains identical across the board.

• Premium Component Sourcing: We utilize only top-tier LED chips and industrial-grade circuitry, eliminating the risk of premature failure and safeguarding your production yield.

Flexible Supply Chain & Delivery

Agility in procurement is just as critical as the hardware itself. Our streamlined manufacturing and logistics networks are designed to support your project timelines, from the initial prototyping phase all the way to full-scale global deployment.

• Frictionless Prototyping: With a minimum order quantity (MOQ) of just a single piece, your engineering teams can effortlessly acquire units for proof-of-concept testing without committing to massive upfront inventory.

• Rapid Standard Dispatch: Standard configurations are assembled, tested, and ready for shipment within an incredibly swift 3 to 5 working days, keeping your urgent facility upgrades on schedule.

• Expedited Custom Builds: Even highly specialized, custom-dimensioned units are turned around in just 7 to 10 working days, proving our exceptional manufacturing agility.

• Scalable Volume Fulfillment: As your operations expand, our robust supply chain seamlessly scales up to deliver bulk quantities without compromising on lead times or build quality.

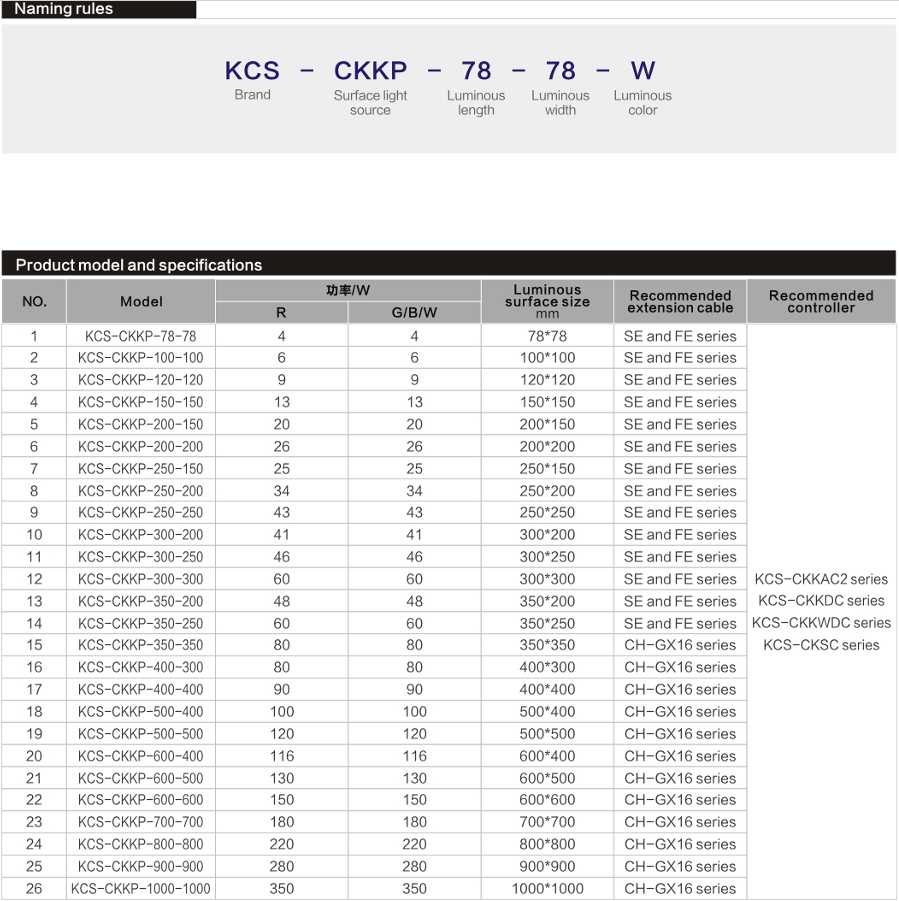

Model List

Industry Applications & Proven Solutions

This high-performance illumination technology is the silent engine driving precision quality control across some of the most demanding sectors in modern manufacturing. By providing crystal-clear visual data, it solves complex inspection challenges across diverse applications.

• Printed Circuit Board (PCB) Inspection: Illuminates from behind to instantly highlight missing components, broken traces, and soldering inconsistencies, ensuring zero-defect electronics manufacturing.

• Transparent Material Analysis: Pierces through glass and optical-grade plastics to reveal internal bubbles, micro-fractures, and surface scratches that front-lighting would completely miss.

• Flat Panel Display Testing: Provides the perfect uniform background to rigorously test LCD and OLED panels for dead pixels, light bleed, and color uniformity before final assembly.

• High-Speed Automated Sorting: Integrates seamlessly into food processing and packaging lines, allowing optical sensors to instantly categorize items based on precise shape, size, and opacity profiles.

• Liquid Level Verification: Casts a sharp silhouette through translucent bottles and vials, enabling automated systems to verify exact fill volumes in pharmaceutical and beverage production.

FAQ

Navigating the technical nuances of machine vision lighting requires precise information. Below are detailed answers to the most critical questions regarding our illumination solutions.

• What is the minimum order quantity (MOQ) for these lighting units?
  We maintain a highly flexible procurement policy with an MOQ of just 1 piece. This allows your engineering teams to acquire single units for rigorous prototyping and proof-of-concept testing before committing to larger volume rollouts.

• Can the physical dimensions and optical properties be customized?
  Absolutely. We offer deep customization capabilities. You can specify exact dimensions, request specific camera mounting holes, and select from a wide range of LED wavelengths (including UV and IR) to perfectly match your target material’s unique inspection requirements.

• What are the expected lead times for both standard and customized orders?
  For our standard configurations, we ensure rapid dispatch within 3 to 5 working days. If your project requires custom engineering and manufacturing, the lead time remains highly efficient, typically ranging from 7 to 10 working days depending on the complexity of the design.

• How does the product perform over long-term continuous operation?
  The units are engineered for extreme longevity. At a standard ambient temperature of 25°C, the LED arrays will operate for 10,000 hours with a brightness decay of less than 30%. For our specialized Ultraviolet (UV) models, the decay is less than 30% after 1,000 hours of continuous use.

• What kind of warranty and technical support is provided?
  We stand behind our manufacturing quality with a comprehensive 1-year warranty. During this period, any malfunctions resulting from non-human factors will be swiftly resolved through free repair or complete replacement services, minimizing your operational downtime.
