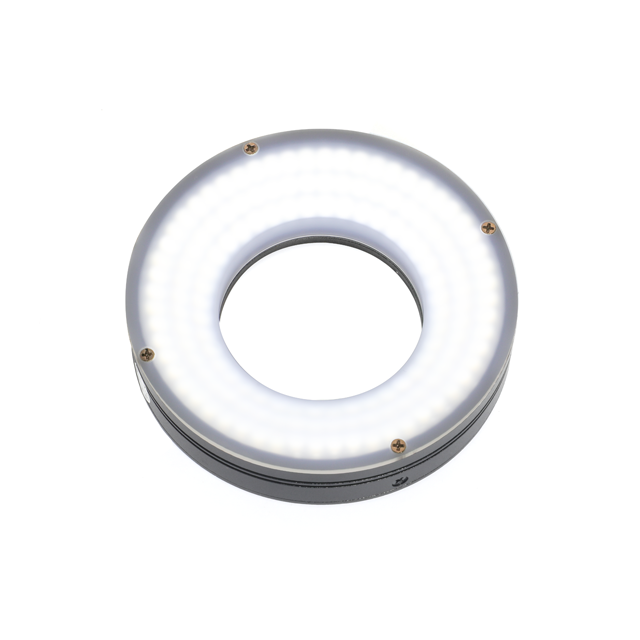

Ring Shaped Shadowless Machine Vision Light

Product Overview

As a premier manufacturer and direct supplier of advanced machine vision illumination, we engineer the Ring-Shaped Shadowless Light to deliver flawless, uniform illumination for critical inspection tasks. Designed specifically for industrial procurement and volume orders, this lighting unit eradicates shadows and glare, ensuring absolute precision in automated optical inspection (AOI) environments.

• High-brightness LED array for maximum sensor clarity

• Shadow-free, 360-degree uniform optical coverage

• Ideal for complex surface geometries and reflective materials

The Ring-Shaped Shadowless Light represents the pinnacle of optical engineering, meticulously crafted to transform challenging inspection environments into highly controlled, perfectly illuminated setups. When interacting with highly reflective surfaces, intricate electronic assemblies, or microscopic semiconductor wafers, standard lighting often introduces harsh glares and deceptive shadows that severely compromise camera sensor accuracy. This specialized luminaire solves that fundamental problem by casting a continuous, perfectly diffused halo of light that envelops the target object from all angles, ensuring that every microscopic detail is captured with absolute fidelity.

The physical construction features a robust, thermally optimized alloy housing that dissipates heat efficiently. This ensures the premium LED chips remain cool to the touch and maintain absolute luminous stability, even during continuous, high-speed production cycles. By delivering an ultra-smooth gradient of light, the unit dramatically enhances the contrast of minute surface details, scratches, and dimensional variations. This allows industrial cameras to capture razor-sharp, high-fidelity images without the interference of optical artifacts. Whether integrated into a high-speed packaging line or a delicate robotic assembly station, this lighting solution acts as the critical bridge between physical components and flawless digital analysis, driving down false reject rates and elevating overall operational efficiency.

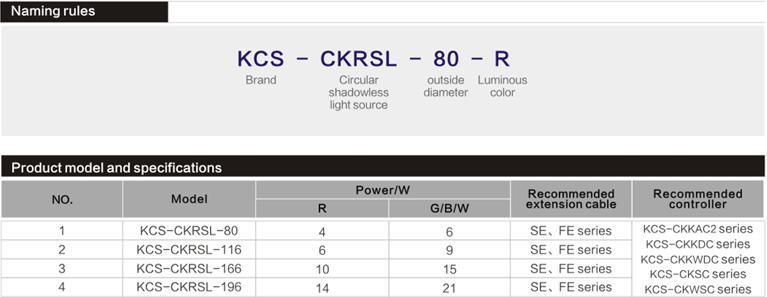

Product Specifications

Key Features & Highlights

Engineering an optimal visual environment requires more than just raw lumens; it requires intelligent light manipulation. The Ring-Shaped Shadowless Light is packed with features designed to directly improve your automated inspection workflows, reducing downtime and enhancing detection reliability across the board.

• Flawless Glare Eradication: The specialized annular design diffuses light evenly across the subject, completely neutralizing hotspots on highly reflective metals, machined parts, and glossy plastics.

• Exceptional Contrast Enhancement: By eliminating micro-shadows, the light reveals the true topography of the inspected item, making microscopic cracks, uneven surfaces, and solder joint defects instantly visible to the camera sensor.

• Thermal Stability for Consistent Output: Built with an advanced heat-dissipation architecture, the unit maintains a cool operating temperature, preventing thermal degradation of the LEDs and ensuring the light intensity remains absolutely stable shift after shift.

• Seamless Integration Profile: The compact, low-profile footprint allows the light to be mounted in extremely tight spaces within complex machinery without obstructing robotic arms or moving optical lenses.

• Energy-Efficient Operation: Despite its massive illuminance capabilities, the optimized LED array consumes minimal power, reducing operational overhead for large-scale facility deployments.

Optical Performance & Imaging Quality

Achieving peak imaging quality is the cornerstone of any successful machine vision system. This ring light is meticulously engineered to deliver an astonishing maximum illuminance of up to 120,000 lux, providing the intense, piercing illumination necessary for high-speed camera exposures in fast-paced manufacturing setups.

• Superior Light Uniformity: With a validated light uniformity exceeding 95%, the unit ensures that every pixel across the camera's field of view receives consistent illumination, completely preventing edge-darkening and false defect readings.

• High-Speed Exposure Support: The massive lumen output allows for microsecond camera exposure times, freezing fast-moving components on the production line without a trace of motion blur.

• Optimized Signal-to-Noise Ratio: By flooding the inspection zone with clean, stable light, the system minimizes digital image noise, allowing complex vision algorithms to process data with absolute certainty and speed.

Multi-Spectrum & Customization Capabilities

Different materials react to light in vastly different ways. To accommodate the diverse and highly specific needs of modern manufacturing, we offer extensive multi-spectrum options and deep customization capabilities tailored to your exact material challenges and inspection parameters.

• Comprehensive Wavelength Selection: Choose from precise wavelengths including Red (620-630nm), Green (520-530nm), Blue (460-470nm), Infrared (850/940nm), and Ultraviolet (365-405nm) to maximize contrast on specific colored or fluorescent materials.

• Adjustable White Light: The white light variant offers a crisp 6500±500K output, with customizable color temperature tuning between 3000K and 6500K to perfectly match the reflective properties of the target substrate.

• Precision Brightness Control: Multi-level brightness adjustment allows technicians to dial in the exact light intensity required, preventing sensor washout on highly reflective semiconductor wafers or polished metals.

• Tailored Engineering: As a dedicated manufacturer, we provide bespoke modifications to housing dimensions, mounting points, and LED configurations to perfectly align with your proprietary equipment and spatial constraints.

Industrial-Grade Durability & Lifespan

Industrial environments are unforgiving, demanding equipment that can withstand continuous operation, mechanical vibration, and ambient temperature fluctuations. This light is built from the ground up to deliver relentless reliability year after year, protecting your production line from unexpected downtime.

• Extended Operational Life: The premium LED array and robust alloy housing deliver a structural service life exceeding 50,000 hours, virtually eliminating the need for frequent replacements and costly line stoppages.

• Minimal Light Degradation: Engineered for long-term stability, our standard light sources exhibit less than 30% brightness decay even after 10,000 hours of continuous use, ensuring absolute consistency in your inspection parameters.

• Resilient UV Performance: The highly specialized ultraviolet variants maintain exceptional longevity, guaranteeing less than 30% optical decay after 1,000 hours of rigorous operation at standard ambient temperatures.

• Rugged Environmental Tolerance: Designed to operate flawlessly in ambient temperatures ranging from 0 to 40°C, and can be safely stored in harsh environments from -20 to 60°C with up to 80% non-condensing humidity.

System Compatibility & Installation Flexibility

Upgrading your vision system should not require a complete redesign of your mechanical setup. We prioritized modularity and universal compatibility during the design phase to ensure a frictionless installation process for your engineering teams.

• Universal Camera Fit: The modular architecture is designed to seamlessly pair with a vast array of industrial area scan cameras, line scan cameras, and high-magnification optical microscopes.

• Versatile Mounting Options: Whether your setup requires secure clamp mounting, precise threaded integration, or flexible bracket attachments, the housing accommodates diverse mechanical constraints with ease.

• Advanced Controller Pairing: Fully compatible with our KCS-CKKAC2, KCS-CKKDC, KCS-CKKWDC, and KCS-CKSC series controllers, enabling sophisticated analog, digital display, or high-speed strobe control.

• Expandable Ecosystem: Optional accessories, including high-flex extension cables and specialized diffuser plates, allow you to further refine the physical reach and optical softness of the setup without custom fabrication.

Supply Chain Response & Service Guarantee

We understand that in large-scale manufacturing, procurement delays and equipment failures translate directly to lost revenue. As your direct supplier, we offer a highly responsive, streamlined supply chain and rock-solid service guarantees to protect your operations.

• Agile Order Fulfillment: We support highly flexible procurement strategies with a minimum order quantity (MOQ) of just 1 piece, allowing for risk-free prototyping before committing to facility-wide rollouts.

• Rapid Delivery Timelines: Standard configurations are dispatched within a swift 3 to 5 working days. For highly specialized custom builds, our streamlined production ensures delivery within 7 to 10 working days.

• Comprehensive Warranty Protection: Every unit is backed by a robust 1-year warranty. In the rare event of a malfunction due to non-human factors, we provide immediate, free-of-charge repair or replacement services.

• Dedicated Technical Support: Our in-house engineering team is readily available to assist your staff with integration troubleshooting, controller configuration, and optical optimization to ensure your line stays operational.

International Standards & Compliance

Global manufacturing requires equipment that meets stringent international safety and environmental regulations. You can deploy our lighting solutions across your international facilities with absolute confidence in their compliance and safety.

• CE Certification: Rigorously tested and certified to meet European health, safety, and environmental protection standards, ensuring safe operation within any modern facility.

• RoHS Compliance: Manufactured strictly without the use of hazardous materials, aligning with global sustainability initiatives and protecting your workforce from toxic exposure.

• Consistent Quality Control: Every single unit undergoes rigorous pre-shipment optical and thermal testing to ensure it meets our exacting internal standards before it reaches your loading dock.

• Export-Ready Documentation: We provide all necessary compliance documentation and certifications to facilitate smooth, delay-free international customs clearance for your volume orders.

Why Choose Us

Partnering with the right lighting manufacturer is critical to the long-term success of your automation infrastructure. We bring decades of optical engineering expertise directly to your procurement team, ensuring you receive the best possible solution.

• Direct Manufacturer Advantage: By cutting out intermediaries, we offer highly competitive pricing structures for volume orders without ever compromising on premium material quality or optical performance.

• Uncompromising Material Selection: We source only the highest-tier LED chips and aerospace-grade alloys, ensuring every product delivers maximum performance, thermal efficiency, and longevity.

• End-to-End Customization: From initial CAD design to final optical testing, our engineering team works closely with you to develop bespoke lighting solutions that fit your exact machine specifications.

• Proven Industry Track Record: Our lighting systems are trusted by leading automated facilities worldwide, consistently delivering the unyielding reliability required for 24/7 continuous manufacturing operations.
