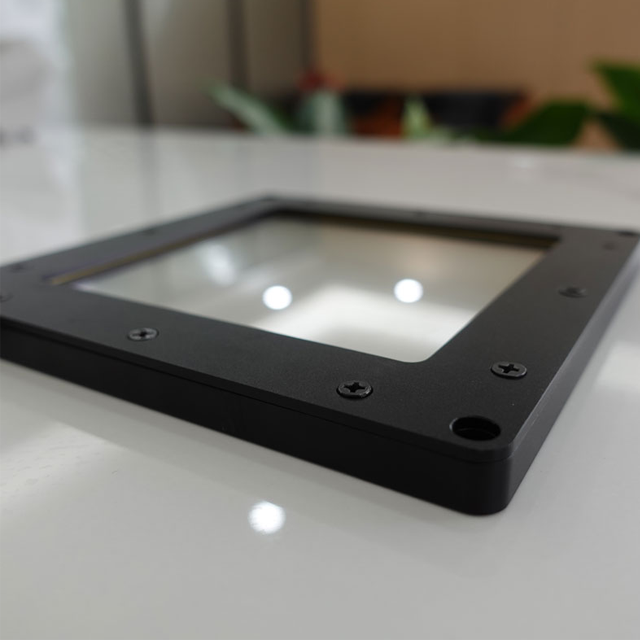

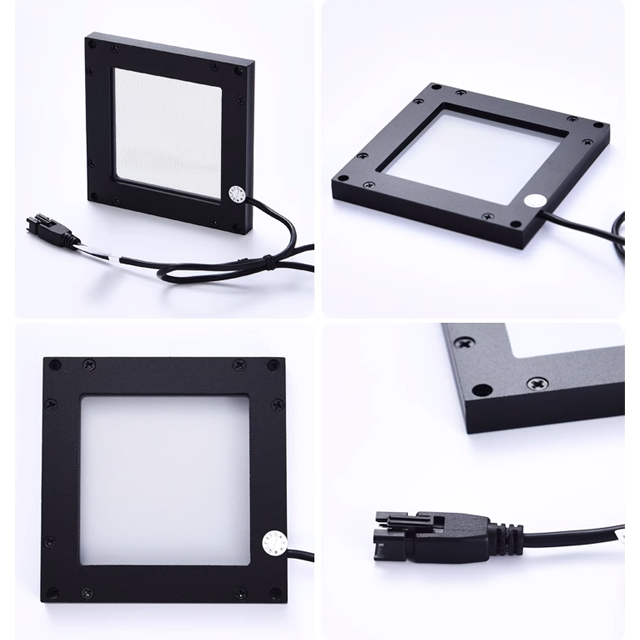

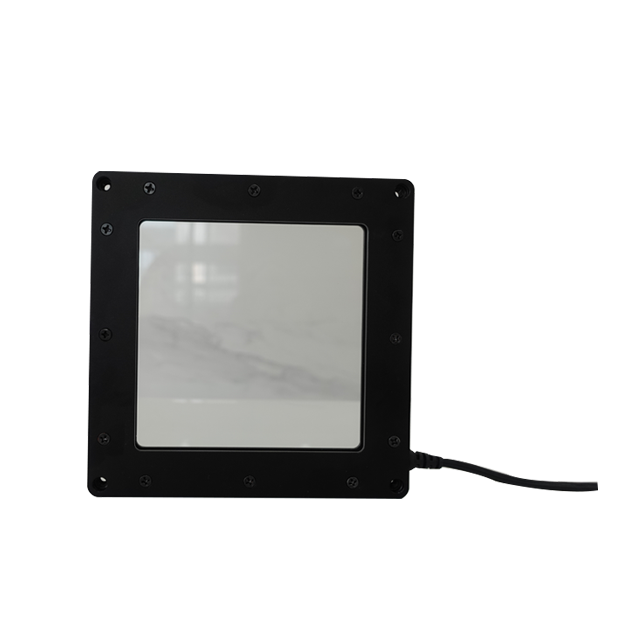

Planar Coaxial LED Machine Vision Light
| Quantity: | |
|---|---|
Product Overview
As a premier manufacturer and supplier of precision optical solutions, we present the Planar Coaxial Light Source. Engineered for advanced machine vision systems, this illumination unit delivers flawless, glare-free imaging for highly reflective surfaces.
High-uniformity planar illumination exceeding 95%
Shadow-free coaxial reflection technology for pristine imaging
Direct-from-manufacturer pricing with scalable volume fulfillment
Robust industrial-grade build with fully customizable parameters
The Planar Coaxial Light Source is meticulously engineered to conquer the most demanding illumination challenges in modern automated inspection environments. Encased in a sleek, industrially hardened chassis, it feels exceptionally robust to the touch, reflecting the premium craftsmanship required for rigorous daily operation. By projecting a perfectly uniform beam of light directly parallel to the camera's optical axis, this device completely eradicates the harsh shadows and blinding glare that typically plague the inspection of highly reflective, mirrored, or exceptionally smooth surfaces.
This pristine optical environment allows your vision systems to capture crisp, high-contrast images, revealing microscopic scratches, subtle dents, and minute surface anomalies that ordinary lighting would obscure. Integrating this sophisticated lighting solution into your production line instantly elevates your quality control capabilities, drastically reducing false rejects and ensuring that only flawless components pass through your facility. The result is a more streamlined, efficient, and highly profitable inspection process that safeguards your operational reputation and enhances overall manufacturing yield.
Product Specifications
Below is the comprehensive technical data for the Planar Coaxial Light Source, detailing its electrical, optical, and environmental parameters to assist your engineering team in seamless integration.

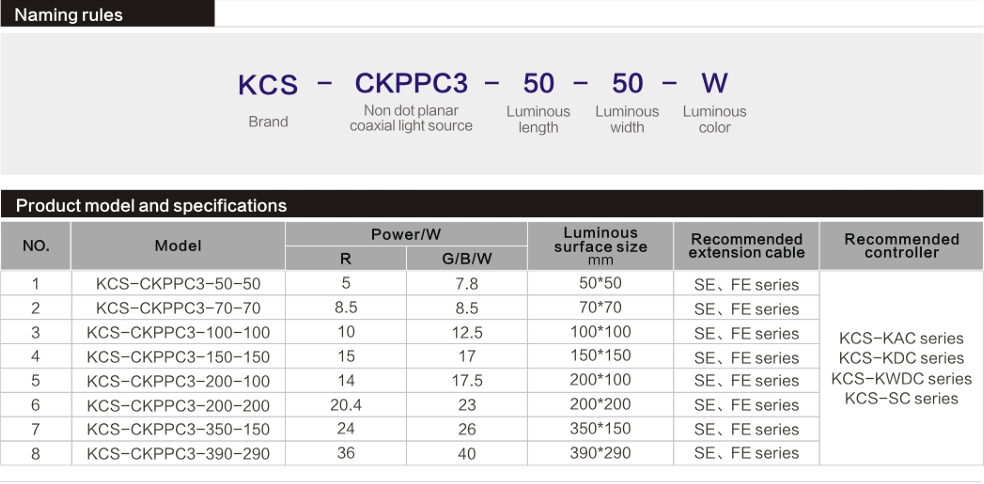

Specification | Details |
Input Voltage | 24V DC |
Wavelength / Color Temperature | Red (R) 620-630nm / Green (G) 520-530nm / Blue (B) 460-470nm / White (W) 6500±500K / Infrared (IR) 850/940nm / Ultraviolet (UV) 365-405nm |
Illumination Uniformity | >95% |
Light Source Lifespan | >50,000 hours |
Light Decay Performance | Normal decay <5% (brightness drop <30% after 10,000 hours); UV light decay <30% after 1,000 hours |
Operating Temperature | 0-40°C |
Storage Environment | Temperature -20-60°C, Humidity 20-80% (non-condensing) |
Installation Methods | Clamp, bracket, or threaded mounting |
Optional Accessories | Light source extension cable, diffuser plate |
Compatible Controllers | KCS-CKKAC2 series, KCS-CKKDC series, KCS-CKKWDC series, KCS-CKSC series |
Product Certification | CE Certification |
Minimum Order Quantity (MOQ) | 1 piece |
Lead Time | Standard products: 3-5 working days; Customized products: 7-10 working days |
Warranty | 1 year |
Industrial Stability & Durability
Industrial environments are unforgiving, demanding equipment that can endure constant vibration, temperature fluctuations, and relentless operational cycles. This light source is built from premium-grade materials, ensuring it remains a steadfast component in your quality assurance arsenal for years to come.
Extended Operational Lifespan: Utilizing top-tier LED arrays, the unit boasts a functional life exceeding 50,000 hours, drastically reducing the frequency of replacement and associated downtime.
Exceptional Lumen Maintenance: Engineered to resist degradation, the standard light decay remains below 5%, ensuring your vision systems receive consistent illumination intensity year after year.
Ruggedized Housing: The solid, precision-machined exterior not only protects delicate internal optics from environmental contaminants but also serves as a highly efficient thermal sink.
Reliable High-Volume Performance: Designed specifically to handle the grueling pace of continuous manufacturing lines without succumbing to thermal throttling or output instability.
Flexible Control & Customization
Recognizing that no two inspection tasks are identical, we offer profound flexibility in how this illumination system is configured and controlled. Whether you are dealing with unique material reflectivities or highly specialized spatial constraints, the unit adapts to your specific operational parameters.
Multi-Level Intensity Adjustment: Seamlessly scale the brightness to match the exact exposure requirements of your camera sensors and the specific reflectivity of the target material.
Comprehensive Spectrum Options: Available across a full spectrum of wavelengths, including precise Red, Green, Blue, stark White, penetrating Infrared (IR), and specialized Ultraviolet (UV) configurations.
Deep OEM/ODM Customization: We offer extensive structural and optical customization, allowing you to dictate specific dimensions, light source types, and performance parameters to fit proprietary machinery.
Adaptable Mounting Solutions: Features versatile installation options including secure clamps, adjustable brackets, and standardized threaded mounting points for rapid deployment in any spatial orientation.
Supply Chain & Fast Delivery
As a direct source manufacturer, we eliminate the friction, delays, and inflated costs associated with intermediary distributors. Our streamlined production and logistics networks are optimized to support your procurement schedules, ensuring your automated lines are up and running without unnecessary delay.
Direct Manufacturer Economics: By bypassing third-party markups, we deliver premium optical performance at a highly competitive factory-direct price point, optimizing your procurement budget.
Scalable Order Fulfillment: Whether you require a single unit for a prototype laboratory or hundreds for a massive factory rollout, we support a minimum order quantity (MOQ) of just 1 piece.
Rapid Dispatch Protocols: Standard configurations are fully stocked and typically leave our facility within a brisk 3 to 5 working days, while customized OEM orders are engineered and dispatched within 7 to 10 working days.
Quality Control & Reliable Warranty
Trust is built on a foundation of uncompromising reliability and steadfast post-purchase support. Every single illumination unit undergoes a battery of brutal stress tests and precise optical calibrations before it is ever allowed to leave our manufacturing floor.
International Safety Compliance: Fully certified under CE standards, guaranteeing that the electrical and structural integrity meets strict global safety and operational benchmarks.
Rigorous Pre-Shipment Testing: Each unit is subjected to intense aging cycles and photometric analysis to ensure absolute uniformity and thermal stability out of the box.
Comprehensive Protection Plan: Backed by a solid 1-year warranty, covering any defects arising from non-human factors, providing complete peace of mind for your procurement team alongside lifetime technical support.
Why Choose Us
Partnering with the right manufacturer is just as critical as selecting the right hardware. We bring decades of specialized expertise in optical engineering directly to your procurement strategy, acting not just as a supplier, but as a dedicated extension of your engineering team.
Unrivaled Optical Expertise: Our deep understanding of light manipulation ensures that every product we manufacture solves real-world inspection bottlenecks.
Agile Manufacturing Capabilities: Our state-of-the-art production facilities can pivot rapidly to accommodate sudden surges in volume or complex custom engineering requests.
Commitment to Yield Improvement: Our lighting solutions are explicitly designed to lower your false-reject rates and improve the overall yield of your automated production lines.
Transparent Communication: From initial consultation to post-delivery support, we provide clear, accurate, and highly responsive communication to keep your projects perfectly on track.
