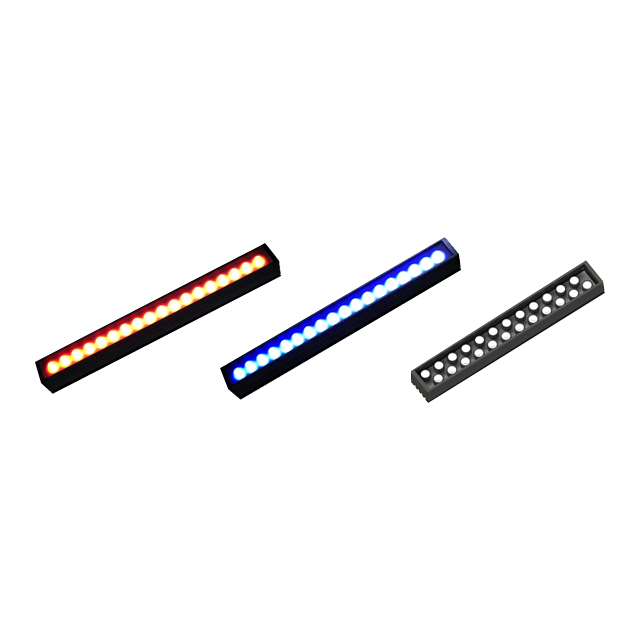

High Brightness Industrial LED Bar Light

Key Features & Highlights

Uncompromising Illumination Uniformity

Achieving a luminous uniformity exceeding 95%, this linear array ensures that every millimeter of your inspection target receives identical light intensity. This translates directly to flawless image capture without the dark spots or blown-out highlights that typically trigger false negatives in automated systems.

• Drastically improves the reliability of edge detection algorithms.

• Stabilizes visual contrast across highly reflective or uneven surfaces.

• Reduces the engineering hours spent on complex, software-side image correction.

Thermal Management and Structural Integrity

The outer chassis is engineered from premium extruded alloys, providing a cold-to-the-touch thermal dissipation system even during prolonged operation. This proactive heat management prevents thermal accumulation from degrading the LED chips, maintaining strict color consistency over tens of thousands of hours.

• Protects sensitive adjacent machinery and camera lenses from thermal bleed.

• Ensures structural rigidity against the constant micro-vibrations found on active assembly lines.

• Maintains a pristine, professional appearance suitable for stringent cleanroom environments.

Seamless Integration Capability

Designed strictly with the systems integrator in mind, the physical architecture allows for rapid, frustration-free deployment. The tactile feedback of the mounting threads and the secure, satisfying click of the extension cables demonstrate superior craftsmanship, saving valuable time during initial setup and routine maintenance.

• Multiple mounting configurations adapt to highly restricted spatial envelopes.

• Standardized connectors ensure immediate compatibility with existing power infrastructures.

• Reduces overall installation downtime, accelerating your return on investment.

Advanced Optical & Structural Capabilities

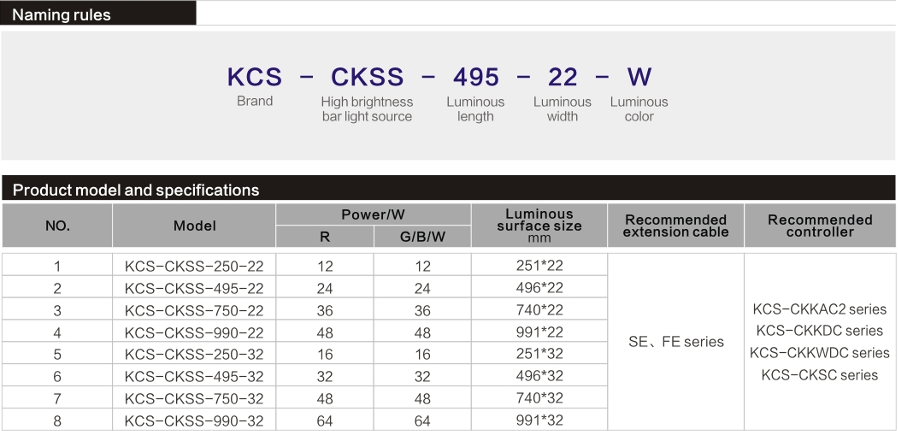

Model List

Optical Performance & Brightness

Engineered specifically for high-speed machine vision systems, this unit shatters conventional lighting limitations by delivering an illuminance exceeding 100,000 lux. Combined with a luminous uniformity of over 95%, it provides a high-contrast linear beam that physically cuts through ambient factory lighting to reveal what standard fixtures miss.

• Eliminates shadows and glare to expose microscopic surface defects on critical components.

• Significantly enhances the precision of automated optical inspection (AOI) and dimensional measurements.

• Accelerates camera exposure times, allowing for faster conveyor speeds and higher production throughput.

Wavelength & Color Options

Advanced material inspection requires precise spectral matching to achieve optimal contrast. This series offers a comprehensive optical spectrum ranging from Ultraviolet (UV 365-405nm) and visible light (RGB and White) to Infrared (IR 850/940nm), giving you the exact photon wavelength required for your specific target.

• Perfectly matches the absorption and reflection characteristics of metals, plastics, glass, and semiconductor wafers.

• UV options effortlessly reveal invisible adhesives, conformal coatings, and fluorescent markers.

• IR variants penetrate opaque resins and reduce blinding surface reflections on complex printed circuit boards.

Industrial Durability & Lifespan

Built for relentless, continuous operation, the compact housing features advanced thermal routing pathways. This meticulous design extends the lamp body lifespan well beyond 50,000 hours, ensuring your vision systems remain online without unexpected interruptions.

• Standard LEDs maintain over 70% brightness after 10,000 hours of continuous use at 25°C.

• Specialized UV configurations deliver highly stable output with minimal decay over 1,000 hours.

• Drastically slashes maintenance downtime and replacement costs over the equipment's lifecycle.

Advanced Optical & Structural Capabilities

Flexible Control & Compatibility

Adaptability is at the core of this lighting solution. It seamlessly interfaces with a variety of analog, digital display, and strobe controllers, granting you absolute, granular command over luminous intensity to match dynamic inspection criteria.

• Enables multi-level brightness adjustments for routines that inspect varying materials on the same line.

• Highly compatible with mainstream industrial cameras, lenses, and vision processing software.

• Effortlessly handles the rigorous demands of precision electronic component identification and PCB solder joint verification.

Modular Design & Easy Installation

Space on an automated production line is a premium commodity. The compact, modular architecture of this linear light ensures it fits into the most restrictive spatial envelopes without interfering with robotic arms or material handling systems.

• Offers versatile mounting solutions including secure clamp, threaded, and bracket options.

• Available in multiple physical size configurations to precisely match your camera's field-of-view requirements.

• Facilitates rapid physical deployment and immediate system integration for fast-paced facility upgrades.

Certifications & Customization Services

Sourcing industrial components requires absolute trust in quality, safety, and compliance. This product is fully CE and RoHS certified, guaranteeing safe, environmentally responsible operation while offering unparalleled flexibility in procurement.

• Deep customization available for housing color, specific wavelength mixing, and exact physical dimensions.

• Highly accessible procurement with a Minimum Order Quantity (MOQ) of just 1 piece for prototyping.

• Agile fulfillment delivering standard units in 3-5 days and custom builds in 7-10 days, backed by a comprehensive 1-year warranty.

FAQ

• What is the minimum order quantity (MOQ) for the High-brightness Bar Light?

  We maintain a highly flexible procurement policy with an MOQ of just 1 piece. This allows engineers and procurement managers to acquire single units for physical prototyping, software integration, and feasibility testing before committing to larger volume rollouts across multiple facilities.

• Can the wavelength and physical dimensions be customized to fit our specific machinery?

  Absolutely. We offer extensive, deep customization services. You can specify exact wavelengths, housing dimensions, and mounting configurations to ensure the lighting seamlessly integrates into your unique automated optical inspection (AOI) setup without requiring modifications to your existing hardware.

• What is the expected lead time for both standard and customized orders?

  Standard configurations are typically dispatched from our facility within 3 to 5 working days. For units requiring specialized engineering, custom wavelengths, or unique dimensions, the production and delivery cycle is efficiently managed and completed within 7 to 10 working days.

• How does the thermal management system impact the lifespan of the LED array?

  The extruded aluminum housing acts as a highly efficient heat sink, continuously drawing thermal energy away from the sensitive LED diodes. This prevents heat degradation, ensuring the lamp body exceeds 50,000 hours of operational life while maintaining over 70% brightness after 10,000 hours of continuous use at 25°C.

• Which industrial controllers are compatible with this linear lighting system?

  This unit is engineered for broad system compatibility. It pairs perfectly with our KCS-CKKAC2, KCS-CKKDC, KCS-CKKWDC, and KCS-CKSC series controllers. This allows for precise analog, digital, or strobe modulation to perfectly match your camera's exposure settings and inspection speeds.

• What warranty coverage is provided with this industrial lighting equipment?

  We stand firmly behind our manufacturing quality with a comprehensive 1-year warranty. Should any malfunction occur due to non-human factors within this period, we provide prompt and free repair or replacement services to minimize your operational downtime and protect your investment.
