Machine Vision Ring Light
Machine Vision Ring Light Overview
The Machine Vision Ring Light is a vital illumination component in modern industrial imaging and inspection systems. It provides uniform, shadow-free lighting around the camera lens, ensuring high contrast and stable image capture for automated inspection. As a professional manufacturer of machine vision lighting solutions, KCS (Guangdong Shunshangxin Photoelectric Technology Co., Ltd.) delivers precision-engineered illumination designed for reliability and long-term performance. Each unit ensures even brightness distribution, enabling accurate detection of surface defects, edges, and positioning marks in high-speed production environments.
Key Features and Advantages
Our Machine Vision Ring Lights combine advanced LED technology with durable mechanical design to meet diverse inspection needs. They offer high brightness, excellent uniformity, and adjustable illumination angles for different object geometries and reflective surfaces. Compatible with a wide range of cameras and controllers, these lights integrate smoothly into automation systems. Built for stability and durability, they maintain consistent performance over extended operation.
High-intensity, uniform LED output for precision inspection
Adjustable lighting direction for optimal image contrast
Long service life with minimal heat generation
Full compatibility with analog and digital controllers
OEM/ODM support with in-house R&D and fast customization
Product Types and Mounting Options

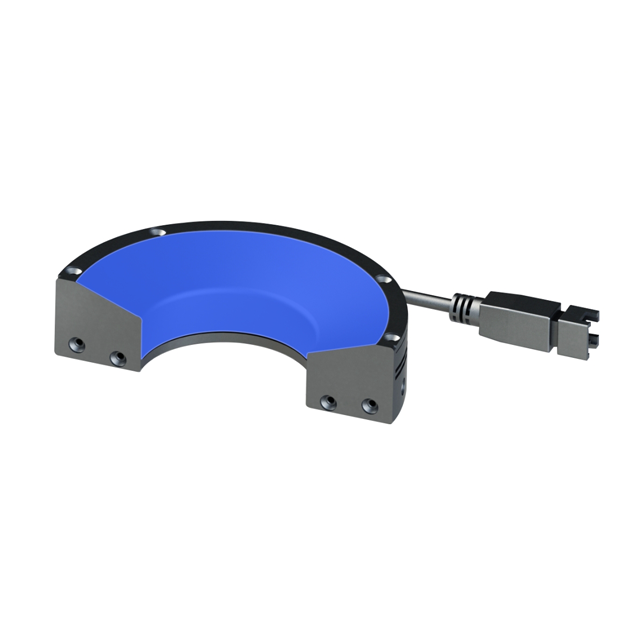

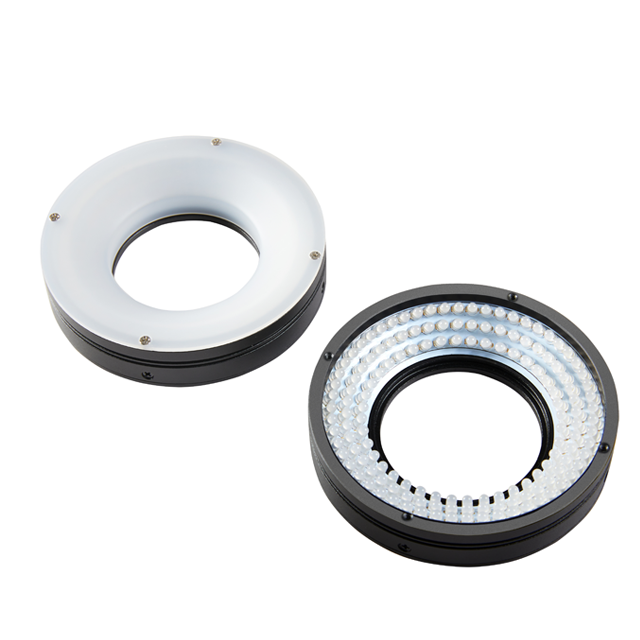

KCS offers multiple Machine Vision Ring Light types to suit various imaging requirements. Options include standard, high-intensity, diffuse, and coaxial-integrated models. Users can also explore specialized designs like the ring-shaped shadowless Machine Vision Light or the semi-ring light option for directional lighting control.
| Type | Key Features | Typical Application |
|---|---|---|
| Standard Ring Light | Uniform illumination, compact design | General inspection and positioning |
| High-Intensity Ring Light | Enhanced brightness for reflective objects | Metal surface and label inspection |
| Diffuse Ring Light | Soft, even lighting with reduced glare | Plastic and curved surfaces |
| Coaxial-Integrated Ring Light | Combined directional and coaxial illumination | Complex geometry inspection |
Applications
The Machine Vision Ring Light plays a key role in industrial automation and inspection. It provides stable illumination for cameras used in electronics assembly, semiconductor wafer inspection, packaging quality control, and automotive component verification. By improving edge detection, surface analysis, and object recognition, these lights help ensure consistent product quality and reduce inspection errors.
Typical applications include:
Automated Optical Inspection (AOI) for PCBs
Surface defect detection on metal or plastic parts
Barcode and mark reading in logistics
Robotic vision positioning and pick-and-place systems
For advanced setups, users can integrate the standard Machine Vision Ring Light with KCS controllers for precise illumination control in synchronized inspection lines.
How to Choose the Right Machine Vision Ring Light
Selecting the right model depends on object size, surface reflectivity, working distance, and lens diameter. For reflective materials, diffuse or shadowless types are ideal. High-intensity options suit dark or textured surfaces. When choosing an LED ring light for inspection, consider wavelength and color temperature—red or infrared for surface contrast, white for general inspection, and blue for fine detail imaging.
| Selection Factor | Recommendation |
|---|---|
| Object Reflectivity | Use diffuse or shadowless ring lights |
| Working Distance | Match diameter and brightness to setup |
| Color/Wavelength | Select based on material and contrast needs |
| Integration | Ensure compatibility with camera mount and controller |
Our technical team can provide tailored vision inspection lighting designs to match specific automation environments and inspection targets.
Customization and Support
As an experienced manufacturer of custom machine vision lighting, KCS offers OEM/ODM ring light design, engineering, and integration support. We provide quick turnaround for prototypes and small-batch orders, helping customers test and deploy optimized lighting solutions efficiently. Our experts assist with controller matching, optical adjustment, and system setup to ensure seamless operation across production lines.
FAQs about Machine Vision Ring Lights
Q1: What is a Machine Vision Ring Light used for?
A: It provides even illumination around the camera lens to minimize shadows and enhance image contrast in inspection systems.
Q2: How do I choose the correct ring light size?
A: Select a diameter that matches your camera lens and field of view for optimal illumination coverage.
Q3: Can KCS customize ring lights for specific applications?
A: Yes, we offer OEM/ODM customization to meet unique inspection and automation requirements.
Q4: What industries commonly use Machine Vision Ring Lights?
A: They are widely used in electronics, semiconductors, packaging, automotive, and medical device inspection.
Q5: Are KCS ring lights compatible with different controllers?
A: Yes, our ring lights work with various machine vision light controllers, including analog and digital models.
For more information or to request a quote, contact KCS—the trusted Machine Vision Ring Light manufacturer and solution provider delivering complete lighting systems for industrial automation and intelligent inspection.
