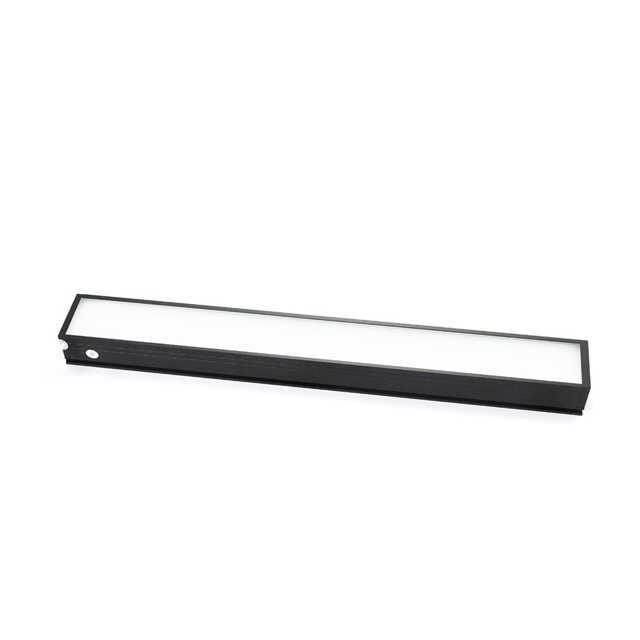

High Uniformity Machine Vision Bar Light

Key Features & Highlights

Elevate your automated inspection capabilities with a lighting solution engineered for uncompromising precision and operational longevity. Our linear illumination module is designed to tackle the most demanding visual tasks with absolute ease and reliability.

• Exceptional Illumination Consistency: Achieves a remarkable ±5% uniformity across the entire emitting surface, ensuring that every captured image is perfectly balanced for accurate software analysis.

• Energy-Efficient Output: Delivers brilliant, high-intensity illumination while maintaining low power consumption, significantly reducing long-term facility energy expenditures.

• Thermal Management Excellence: Housed in a premium aluminum alloy casing that rapidly dissipates heat, preventing thermal degradation and ensuring stable continuous operation.

• Versatile Dimensional Options: Available in a diverse array of sizes to perfectly match the specific field-of-view requirements of your unique inspection machinery.

• Flicker-Free Performance: Provides a completely stable output that eliminates strobe effects, which is absolutely crucial for high-speed line scanning and rapid image acquisition.

Optical Performance & Uniformity

Securing consistent illumination is paramount for procurement specialists outfitting high-speed production lines. Our lighting modules are meticulously engineered to deliver unparalleled stability, ensuring your vision systems never miss a critical defect due to poor lighting conditions.

• High-Density LED Arrays: Utilizes tightly packed, premium LED chips to create a seamless wall of light, effectively eliminating dark spots and uneven gradients.

• Optimized Optical Structure: Features advanced internal reflection and diffusion mechanisms that guarantee an exceptional ±5% uniformity rate across the entire target area.

• Shadow Eradication: The precise linear output effectively washes out shadows on complex geometries, providing a clear, high-contrast view of intricate surface details.

• Enhanced Edge Contrast: Dramatically sharpens the boundaries of manufactured parts, empowering vision algorithms to perform highly accurate dimensional measurements without software confusion.

Wavelength & Spectrum Options

Different materials and inspection tasks demand highly specific light spectrums to reveal hidden flaws. We provide a comprehensive suite of wavelength options, allowing engineers to tailor the visual contrast exactly to the material characteristics of the inspected items.

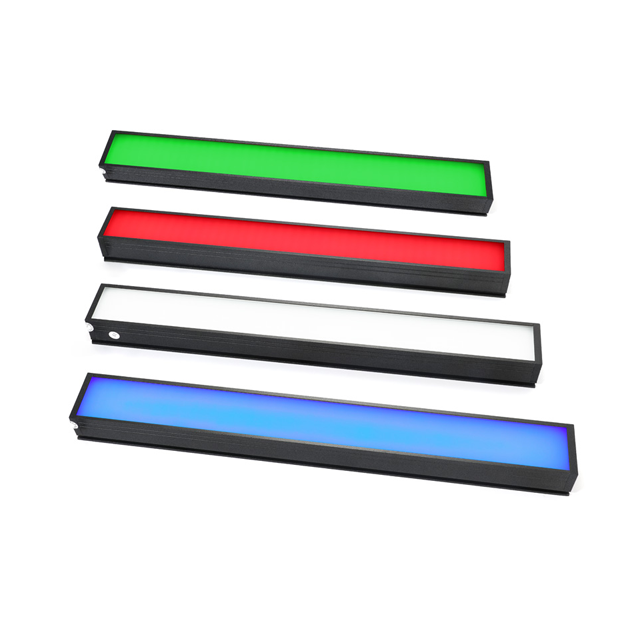

• Visible Light Spectrum: Choose from Red (620-630nm), Green (520-530nm), Blue (460-470nm), and White (6500±500K) to maximize contrast on colored, printed, or textured surfaces.

• Infrared (IR) Penetration: Utilize 850/940nm IR options to inspect through opaque packaging materials or to significantly reduce the glare on highly reflective metallic components.

• Ultraviolet (UV) Activation: Deploy 365-405nm UV spectrums for specialized tasks like fluorescent material detection, transparent glue bead inspection, and invisible barcode reading.

• Application-Specific Tuning: By matching the exact wavelength to your product's unique optical properties, you significantly reduce false-positive rates in automated quality control.

Structural Design & Space Adaptability

Industrial manufacturing environments are often crowded, leaving minimal room for bulky auxiliary equipment. This lighting solution is meticulously crafted to offer maximum performance within a minimal physical footprint, ensuring effortless integration into your existing infrastructure.

• Compact Form Factor: The slim, low-profile design allows the light to be mounted in exceptionally tight spaces without interfering with robotic arms or moving conveyors.

• Rugged Aluminum Alloy Housing: Built to withstand the rigors of heavy industrial use, the solid metal casing protects delicate internal electronics from vibrations, dust, and accidental impacts.

• Advanced Thermal Dissipation: The metallic structure acts as a highly efficient heat sink, drawing warmth away from the LEDs to maintain optimal operating temperatures and prolong component life.

• Flexible Mounting Options: Engineered with standardized mounting channels that facilitate quick, secure installation from multiple angles, dramatically reducing setup time during line changeovers.

Customization & OEM/ODM Capabilities

Standard off-the-shelf components frequently fall short when addressing highly specialized or proprietary manufacturing processes. As a dedicated manufacturer, we offer profound customization services to ensure your lighting perfectly aligns with your unique operational demands.

• Low Barrier to Entry: We support specialized engineering projects and initial testing phases with an exceptionally accessible Minimum Order Quantity (MOQ) of just 1 piece.

• Comprehensive Parameter Adjustment: Tailor the exact dimensions, specific wavelengths, brightness levels, and beam angles to suit your precise field of view and working distance.

• Hardware and Connector Tailoring: Select specific connector types and request custom housing designs to ensure seamless physical and electrical integration with your proprietary machinery.

• Rapid Prototyping to Production: Benefit from our agile manufacturing process, delivering customized prototypes swiftly and scaling up to volume production without compromising lead times.

System Compatibility & Accessories

A high-performing vision system relies on the flawless synchronization of cameras, lenses, lighting, and controllers. Our linear illumination modules are engineered to act as a cohesive, plug-and-play part of your broader automation ecosystem.

• Broad Controller Integration: Fully compatible with a wide range of power and control units, specifically optimized for our KCS-CKKAC2, KCS-CKKDC, KCS-CKKWDC, and KCS-CKSC series.

• Versatile Driving Modes: Supports continuous analog output, precise digital display adjustments, and high-speed strobe control (24V DC) to freeze motion on fast-moving production lines.

• Optical Enhancements: Available with premium diffuser plates that further soften the light output, preventing harsh hot spots on highly reflective, machined, or glossy surfaces.

• Flexible Connectivity: Offered with durable light source extension cables, allowing for flexible routing and positioning away from the main control cabinets in large-scale setups.

Quality Control & Delivery Guarantee

Supply chain reliability and consistent component quality are non-negotiable for large-scale production facilities. We implement stringent quality assurance protocols to ensure every unit performs exactly as specified, right out of the box.

• Certified Safety and Performance: Every unit carries full CE Certification, guaranteeing strict compliance with rigorous international safety and electrical operational standards.

• Exceptional Lifespan: Engineered for endurance, standard light sources maintain over 70% brightness after 10,000 hours of continuous use, while specialized UV units deliver over 1,000 hours of stable output.

• Dependable Consistency: Standardized manufacturing processes ensure extreme batch-to-batch consistency, meaning a light ordered today will perfectly match the optical profile of one ordered a year from now.

• Rapid and Reliable Fulfillment: We maintain a 100% on-time delivery rate, shipping standard configurations in 3-5 working days and complex custom builds in just 7-10 working days.

• Risk-Free Procurement: Backed by a comprehensive 1-year warranty, providing prompt, free repair or replacement services for any non-human-induced malfunctions.

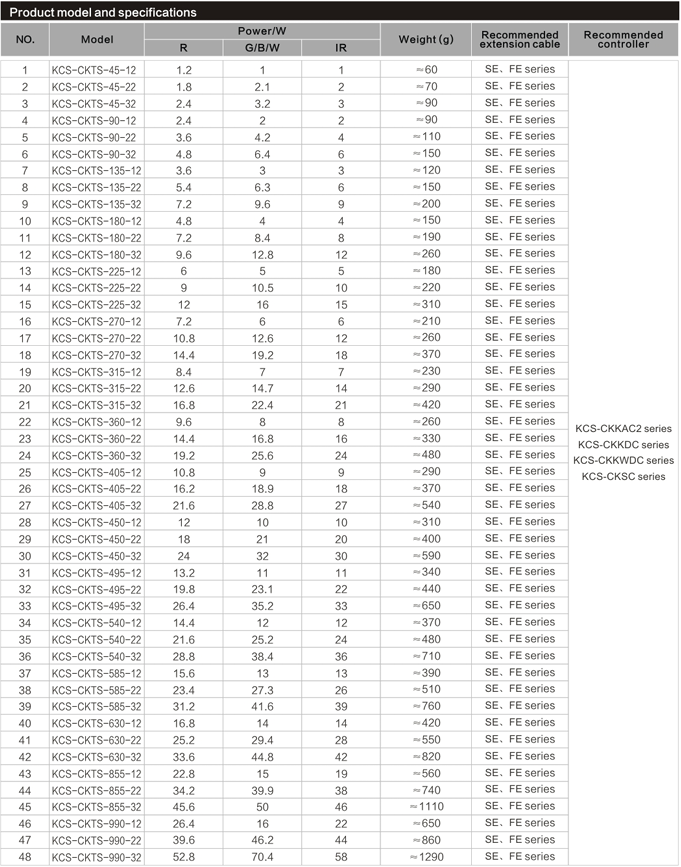

Model List

Industry Applications & Track Record

Trusted by industry leaders worldwide, our illumination technology has been successfully deployed across a multitude of highly demanding manufacturing sectors. Our proven track record speaks to the versatility and reliability of our engineering.

• 3C Electronics Manufacturing: Essential for inspecting microscopic solder joints, verifying PCB component placement, and detecting minute scratches on delicate smartphone displays.

• Semiconductor Fabrication: Utilized in critical wafer inspection and die bonding processes where absolute precision and shadow-free illumination are non-negotiable.

• Automotive Assembly: Deployed for verifying the dimensional accuracy of machined engine components and ensuring the flawless application of industrial adhesives and sealants.

• Packaging and Printing: Perfect for high-speed barcode reading, verifying expiration date prints, and ensuring precise label alignment on cylindrical containers.

• Lithium Battery Production: Crucial for detecting surface anomalies, edge defects, and coating inconsistencies on battery cells to ensure utmost consumer safety and product performance.

FAQ

• What is the expected lead time for a large-scale deployment of these illumination modules?

  For standard configurations, we ensure rapid dispatch within 3 to 5 working days. If your project requires specialized OEM/ODM modifications, our agile production lines can fulfill these custom orders within 7 to 10 working days, ensuring your deployment schedule remains strictly on track.

• How does the aluminum alloy housing impact the operational lifespan of the LEDs?

  The premium aluminum alloy housing acts as a highly efficient thermal sink. By rapidly drawing heat away from the high-density LED arrays, it prevents thermal degradation. This meticulous thermal management is exactly why our standard lights maintain over 70% of their original brightness even after 10,000 hours of continuous operation at 25°C.

• Can these units be integrated with third-party vision controllers?

  Yes, our illumination modules operate on a standard 24V DC input, making them highly compatible with a vast array of industry-standard vision controllers. However, for optimal synchronization, especially in high-speed digital display or strobe applications, we highly recommend pairing them with our proprietary KCS series controllers.

• What specific advantages does the ±5% uniformity offer for edge detection algorithms?

  In machine vision, uneven lighting creates artificial gradients that software can easily misinterpret as physical edges or surface defects. A ±5% uniformity guarantees a flat, consistent light profile across the entire field of view. This drastically reduces software processing errors, lowers false rejection rates, and allows for much tighter dimensional measurement tolerances.

• Is it possible to request a specific wavelength that is not listed in the standard specifications?

  Absolutely. Because we manage the entire manufacturing process in-house, we can source and integrate highly specific LED chips to meet your exact spectral requirements. With an accessible MOQ of just 1 piece, we encourage engineers to request the precise wavelength needed to maximize contrast for their unique inspection materials.
