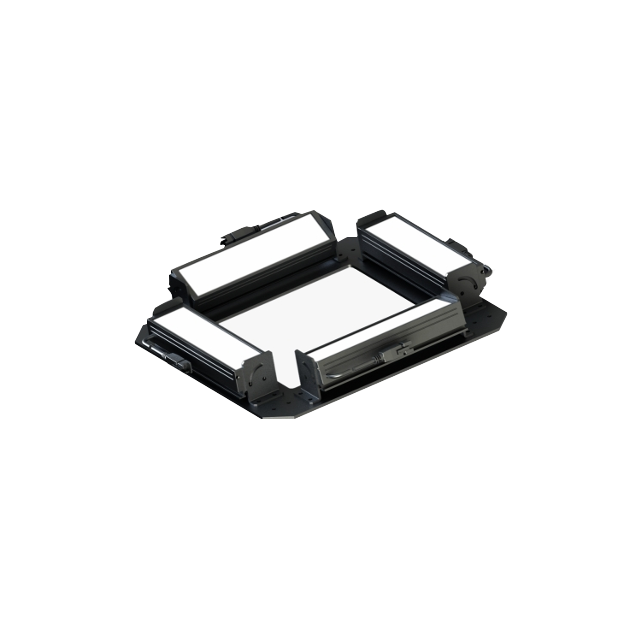

Adjustable Combination LED Machine Vision Light

Key Features & Highlights

Achieving flawless quality control requires equipment that adapts to your operational demands rather than restricting them. The Combination Bar Light is engineered to provide unparalleled control over your imaging environment, ensuring that every captured frame translates into actionable, accurate data. Its sophisticated architecture empowers engineers to tackle complex inspection geometries with absolute ease and precision.

• Customizable Illumination Geometry: The multi-bar modular structure allows you to pivot, angle, and combine light strips, directing intense illumination exactly where it is needed to highlight intricate part topographies.

• Exceptional Contrast Enhancement: By delivering a highly directional and uniform beam, it actively suppresses background noise and specular reflections, making microscopic flaws on highly reflective or dark materials immediately visible.

• Thermal Management Excellence: Built with an advanced heat dissipation framework, the unit remains cool to the touch even during continuous operation, preventing thermal drift that could compromise LED output and imaging consistency.

• Seamless Integration Capability: Designed with a compact footprint and versatile mounting interfaces, it effortlessly retrofits into existing inspection stations, robotic cells, and tight assembly line enclosures.

Advanced Capabilities & Application Dimensions

• Optical Performance & Precision: Utilizing premium LED chips, this lighting module achieves a remarkable 99% illumination uniformity, effectively eradicating shadows and reflective interference. The high-contrast linear light source significantly sharpens the imaging clarity and detection accuracy of machine vision systems, effortlessly meeting the strict demands of micro-feature identification and ensuring sensors capture the most minute details.

• Modular Design & Flexibility: Specifically engineered for complex industrial environments, the system supports independent angle adjustments and length customization. With versatile mounting options including clamps, threads, and brackets, it flexibly adapts to inspection zones of varying dimensions and shapes, perfectly accommodating multi-angle surface evaluations without the need for extensive mechanical redesigns.

• Spectrum & Control Versatility: Offering a comprehensive spectrum selection encompassing RGBW visible light, Infrared (IR), and Ultraviolet (UV), it also supports 3000K-6500K color temperature switching and multi-level brightness tuning. When paired with dedicated digital, analog, or strobe controllers, it precisely matches the visual imaging requirements of diverse materials, from highly reflective metals to transparent glass and delicate semiconductor wafers.

• Industrial Durability & Lifespan: The lamp body features a precision-engineered heat dissipation structure and high-quality materials, guaranteeing reliable, round-the-clock continuous operation on high-intensity automated production lines. With a standard light source lifespan exceeding 50,000 hours and a luminous decay of less than 5%, it drastically reduces equipment maintenance frequency and replacement costs.

• System Compatibility & Integration: Designed for universal compatibility, it integrates flawlessly with various industrial cameras, microscopes, and automated optical inspection (AOI) robotic systems. Whether deployed for high-precision laboratory measurements or guiding robotic arms in automated workshops, it ensures rapid, plug-and-play system integration that minimizes deployment time.

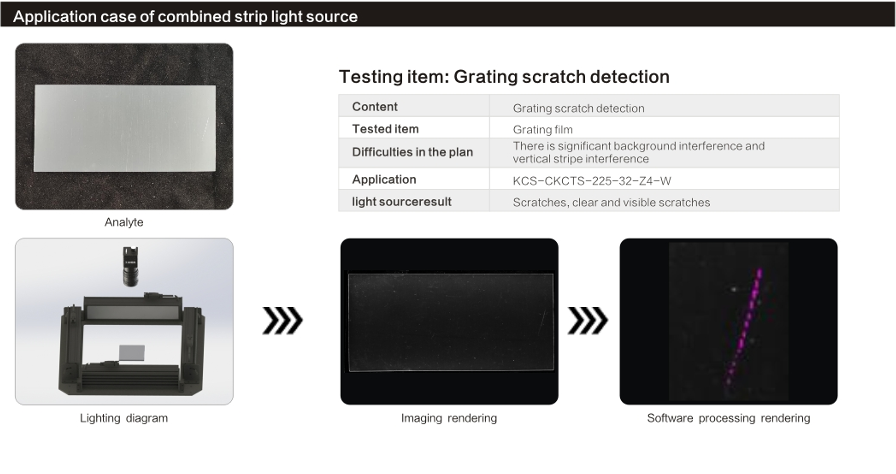

• Versatile Application Scenarios: This illumination powerhouse is widely utilized in identifying solder joint defects on electronic components, detecting micro-cracks on semiconductor wafers, and measuring precise dimensions of mechanical parts. It is also highly effective in spotting scratches and flaws on plastic or ceramic surfaces, acting as a core asset for industrial automated quality inspection across multiple sectors.

• Procurement & Customization Service: All products carry CE certification and support deep OEM/ODM customization covering color, light source type, and dimensions. With a low minimum order quantity of just one piece, rapid delivery of standard items within 3-5 days, and a comprehensive 1-year factory warranty, it fully secures supply chain efficiency and after-sales rights for professional procurement teams.

FAQ

• How does the 99% illumination uniformity impact the accuracy of our automated optical inspection (AOI) systems?

  Achieving 99% uniformity ensures that there are no hot spots or dark zones across the inspection area. This consistent light distribution allows your camera sensors to capture accurate edge definitions and surface textures, drastically reducing false-positive defect detections and improving the overall reliability of your AOI algorithms.

• Can the Combination Bar Light be integrated into a high-speed, continuous motion production line?

  Absolutely. When paired with our optional strobe controllers (such as the KCS-CKSC series), the light can be synchronized with high-speed camera triggers. This delivers intense, microsecond bursts of illumination that freeze the motion of fast-moving parts, resulting in crisp, blur-free images essential for high-speed automated sorting and inspection.

• What specific customization options are available for specialized material inspections?

  We offer extensive customization to match your material's specific optical properties. This includes tailoring the exact wavelength (from 365nm UV for fluorescent inspections to 940nm IR for penetrating certain plastics), adjusting the physical length of the bar, and modifying the color temperature to maximize the contrast of the specific defects you are targeting.

• How does the heat dissipation design contribute to the longevity of the LED modules?

  The housing is crafted from premium materials with an integrated thermal framework that rapidly draws heat away from the LED chips. By maintaining an optimal internal operating temperature, we prevent thermal degradation of the diodes, ensuring the light maintains its intensity and color stability over its >50,000-hour lifespan, even in demanding environments.

• What is the procedure for integrating this lighting module with our existing robotic vision setups?

  Integration is highly straightforward. The unit supports versatile mounting options including clamp, threaded, and bracket systems, allowing it to be securely attached directly to robotic end-effectors or stationary frames. Furthermore, our standard industrial connectors ensure seamless electrical integration with your existing vision controllers and PLCs.
