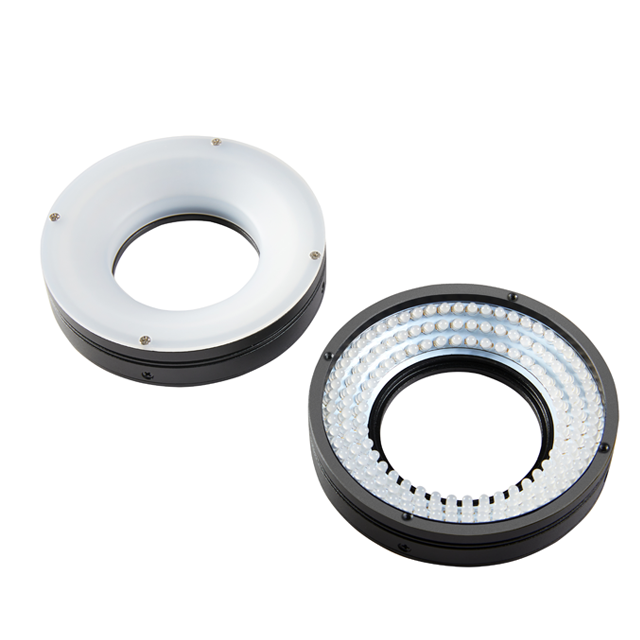

Ring Light

Our Machine Vision Ring Light is specifically designed for industrial automation and visual inspection systems, providing uniform, shadow-free lighting for high-precision image capture. Featuring high-brightness LED technology, this ring light is ideal for applications such as surface inspection, defect detection, and quality control. Its unique ring design eliminates the issues of light spots and reflections common in traditional lighting, enhancing the stability and performance of visual systems. The product offers customizable options to suit various work environments, ensuring optimal lighting. With long lifespan and low energy consumption, it is the perfect choice for automated inspection systems.
Availability:
Quantity:
Geta Quote Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

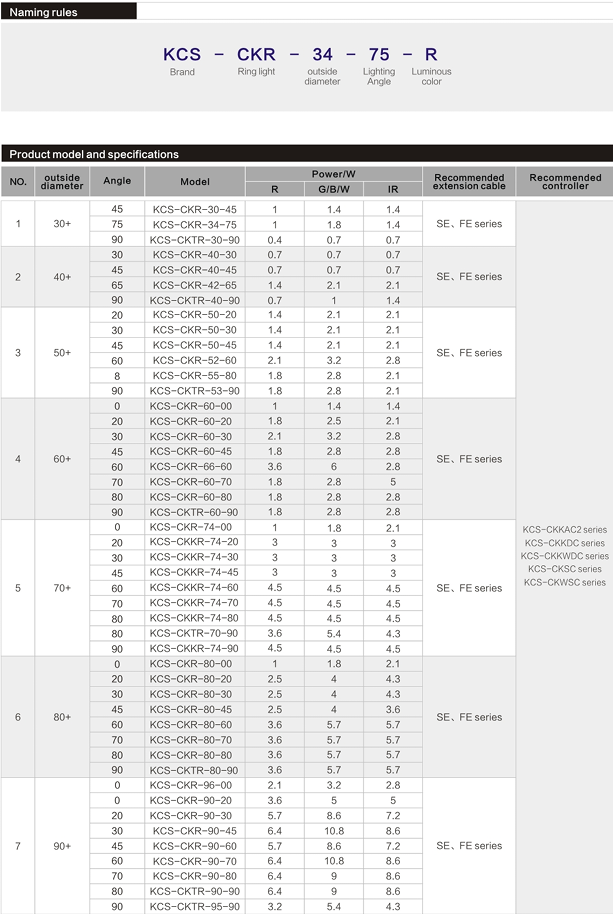

Diameter

Model

Angle

Power(w)

Weight/g

Voltage

red

White/Blue/Green

IR

30+

KCS-CKR-30-45

45

1

1.4

1.4

40

DC24V

KCS-CKR-34-75

75

1

1.8

1.4

40

DC24V

KCS-CKR-30-90

90

1

1

1

30

DC24V

40+

KCS-CKR-40-30

30

0.7

0.7

0.7

40

DC24V

KCS-CKR-40-45

45

0.7

0.7

0.7

40

DC24V

KCS-CKR-42-65

65

1.4

1.4

1.4

40

DC24V

KCS-CKR-40-90

90

0.7

1

1.4

40

DC24V

50+

KCS-CKR-50-20

20

1.4

2.1

2.1

50

DC24V

KCS-CKR-50-30

30

1.4

2.1

2.1

50

DC24V

KCS-CKR-50-45

45

1.4

2.1

2.1

50

DC24V

KCS-CKR-52-60

60

2.1

3.2

2.8

70

DC24V

KCS-CKR-55-80

80

1.8

2.8

2.1

70

DC24V

KCS-CKR-53-90

90

2.8

2.8

2.8

70

DC24V

60+

KCS-CKR-60-00

00

1

1.4

1.4

40

DC24V

KCS-CKR-60-20

20

1.8

2.5

2.1

90

DC24V

KCS-CKR-60-30

30

2.1

3.2

2.8

100

DC24V

KCS-CKR-60-45

45

1.8

2.8

2.8

100

DC24V

KCS-CKR-66-60

60

3.6

6

5

130

DC24V

KCS-CKR-60-70

70

1.8

2.8

2.8

100

DC24V

KCS-CKR-60-80

80

1.8

2.8

2.8

100

DC24V

KCS-CKR-60-90

90

2.8

2.8

2.8

110

DC24V

70+

KCS-CKKR-74-00

00

1

1.8

2.1

120

DC24V

KCS-CKKR-74-20

20

2.5

3.6

3.6

120

DC24V

KCS-CKKR-74-30

30

2.8

4.3

3.6

120

DC24V

KCS-CKKR-74-45

45

2.5

3.6

3.6

120

DC24V

KCS-CKKR-74-60

60

4.3

6.4

5

120

DC24V

KCS-CKKR-74-70

70

4

5.4

5

140

DC24V

KCS-CKKR-74-80

80

2.5

3.6

3

120

DC24V

KCS-CKKR-70-90

90

5.4

5.4

5.4

140

DC24V

KCS-CKKR-74-90

90

5.4

5.4

5.4

150

DC24V

80+

KCS-CKR-80-00

00

1

1.8

2.1

60

DC24V

KCS-CKR-80-20

20

2.5

4

4.3

140

DC24V

KCS-CKR-80-30

30

2.5

4

4.3

140

DC24V

KCS-CKR-80-45

45

2.5

4

3.6

140

DC24V

KCS-CKR-80-60

60

3.6

5.7

5.7

170

DC24V

KCS-CKR-80-70

70

3.6

5.7

5.7

170

DC24V

KCS-CKR-80-80

80

3.6

5.7

5.7

170

DC24V

KCS-CKR-80-90

90

7.2

7.2

7.2

180

DC24V

90+

KCS-CKKR-96-00

00

2.1

3.2

2.8

100

DC24V

KCS-CKKR-90-20

20

3.6

5

5

160

DC24V

KCS-CKKR-90-30

30

5.7

8.6

7.2

200

DC24V

KCS-CKKR-90-45

45

6.4

10.8

8.6

250

DC24V

KCS-CKKR-90-60

60

5.7

10.8

7.2

200

DC24V

KCS-CKKR-90-70

70

6.4

8.6

8.6

250

DC24V

KCS-CKKR-90-80

80

6.4

10.8

8.6

250

DC24V

KCS-CKKR-90-90

90

9

9

9

250

DC24V

KCS-CKKR-95-90

90

5.4

9

5.4

250

DC24V

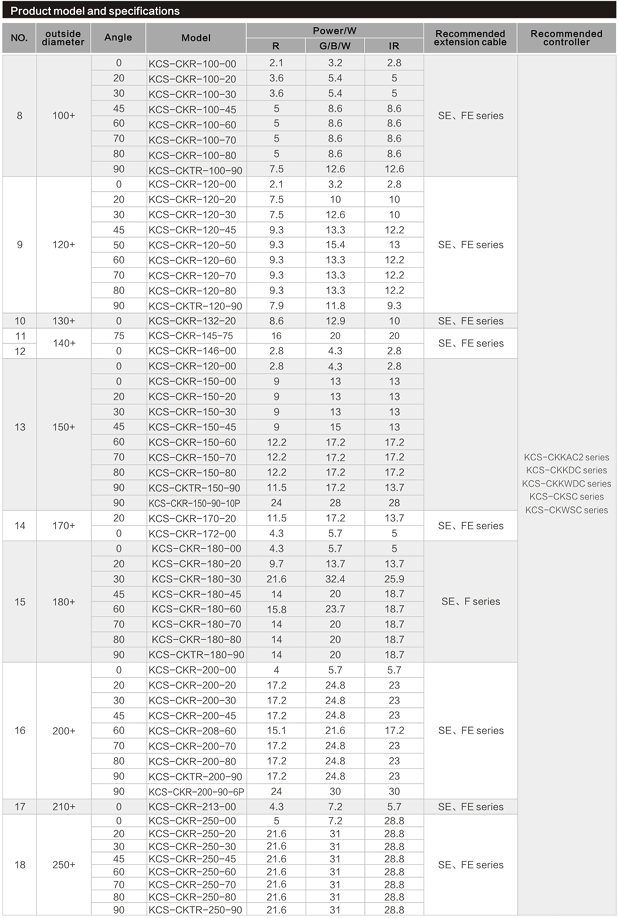

100+

KCS-CKR-100-00

00

2.1

3.2

2.8

100

DC24V

KCS-CKR-100-20

20

3.6

5.4

5

200

DC24V

KCS-CKR-100-30

30

3.6

5.4

5

250

DC24V

KCS-CKR-100-45

45

5

8.6

8.6

250

DC24V

KCS-CKR-100-60

60

5

8.6

8.6

200

DC24V

KCS-CKR-100-70

70

5

8.6

8.6

250

DC24V

KCS-CKR-100-80

80

5

8.6

8.6

250

DC24V

KCS-CKR-100-90

90

10

10

10

320

DC24V

120+

KCS-CKKR-120-00

00

2.1

3.2

2.8

140

DC24V

KCS-CKKR-120-20

20

7.5

10

10

260

DC24V

KCS-CKKR-120-30

30

7.5

12.6

10

260

DC24V

KCS-CKKR-120-45

45

9.3

13.3

12.2

300

DC24V

KCS-CKKR-120-50

50

9.3

15.4

13

300

DC24V

KCS-CKKR-120-60

60

9.3

13.3

12.2

300

DC24V

KCS-CKKR-120-70

70

9.3

13.3

12.2

300

DC24V

KCS-CKKR-120-80

80

9.3

13.3

12.2

300

DC24V

KCS-CKKR-120-90

90

12

12

12

260

DC24V

130+

KCS-CKR-132-20

20

8.6

12.9

10

280

DC24V

140+

KCS-CKR-146-00

00

2.8

4.3

2.8

200

DC24V

150+

KCS-CKKR-150-00

00

2.8

4.3

2.8

220

DC24V

KCS-CKKR-150-20

20

9

13

13

330

DC24V

KCS-CKKR-150-30

30

9

13

13

330

DC24V

KCS-CKKR-150-45

45

9

13

13

330

DC24V

KCS-CKKR-150-60

60

9

15

13

330

DC24V

KCS-CKKR-150-70

70

12.2

17.2

17.2

400

DC24V

KCS-CKKR-150-80

80

12.2

17.2

17.2

400

DC24V

KCS-CKKR-150-90

90

16

16

16

450

DC24V

170+

KCS-CKR-170-20

20

11.5

17.2

13.7

380

DC24V

KCS-CKR-172-00

00

4.3

5.7

5

230

DC24V

180+

KCS-CKKR-180-00

00

4.3

5.7

5

250

DC24V

KCS-CKKR-180-20

20

9.7

13.7

13.7

470

DC24V

KCS-CKKR-180-30

30

21.6

32.4

25.9

660

DC24V

KCS-CKKR-180-45

45

14

20

18.7

550

DC24V

KCS-CKKR-180-60

60

15.8

23.7

18.7

550

DC24V

KCS-CKKR-180-70

70

14

20

18.7

550

DC24V

KCS-CKKR-180-80

80

14

20

18.7

550

DC24V

KCS-CKKR-180-90

90

18

18

18

620

DC24V

200+

KCS-CKR-200-00

00

4

5.7

5.7

320

DC24V

KCS-CKR-200-20

20

17.2

24.8

23

600

DC24V

KCS-CKR-200-30

30

17.2

24.8

23

600

DC24V

KCS-CKR-200-45

45

17.2

24.8

23

600

DC24V

KCS-CKR-208-60

60

17.2

21.6

17.2

530

DC24V

KCS-CKR-200-70

70

17.2

24.8

23

600

DC24V

KCS-CKR-200-80

80

17.2

24.8

23

600

DC24V

KCS-CKR-200-90

90

22

22

22

670

DC24V

210+

KCS-CKR-213-00

00

4.3

7.2

5.7

340

DC24V

250+

KCS-CKR-250-00

00

5

7.2

7.2

400

DC24V

KCS-CKR-250-20

20

21.6

31

28.8

750

DC24V

KCS-CKR-250-30

30

21.6

31

28.8

750

DC24V

KCS-CKR-250-45

45

21.6

31

28.8

750

DC24V

KCS-CKR-250-60

60

21.6

31

28.8

750

DC24V

KCS-CKR-250-70

70

21.6

31

28.8

750

DC24V

KCS-CKR-250-80

80

21.6

31

28.8

750

DC24V

KCS-CKR-250-90

90

28

28

28

850

DC24V

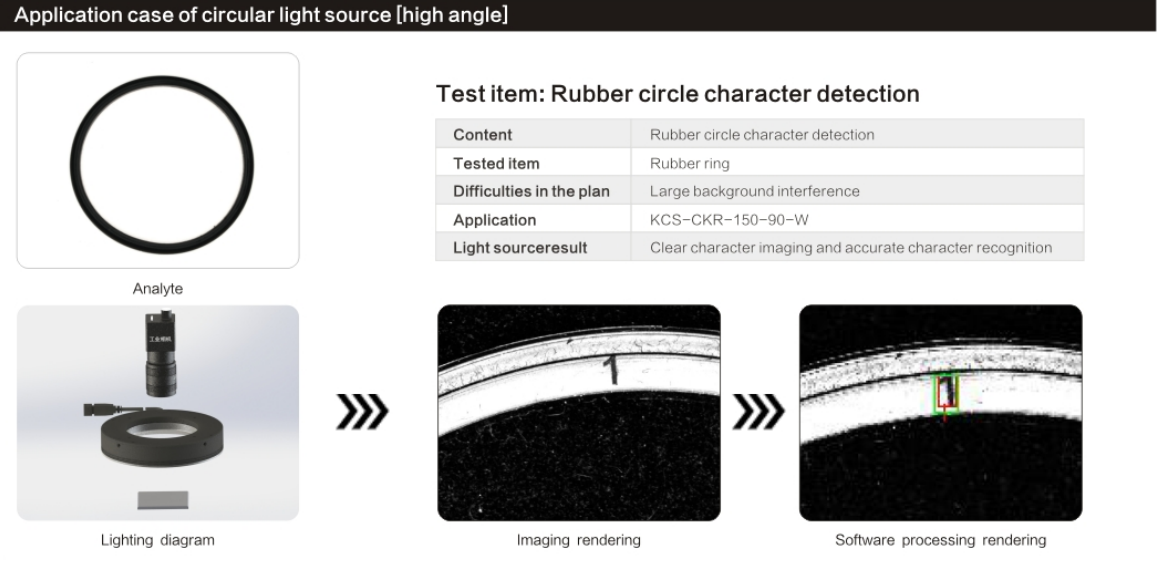

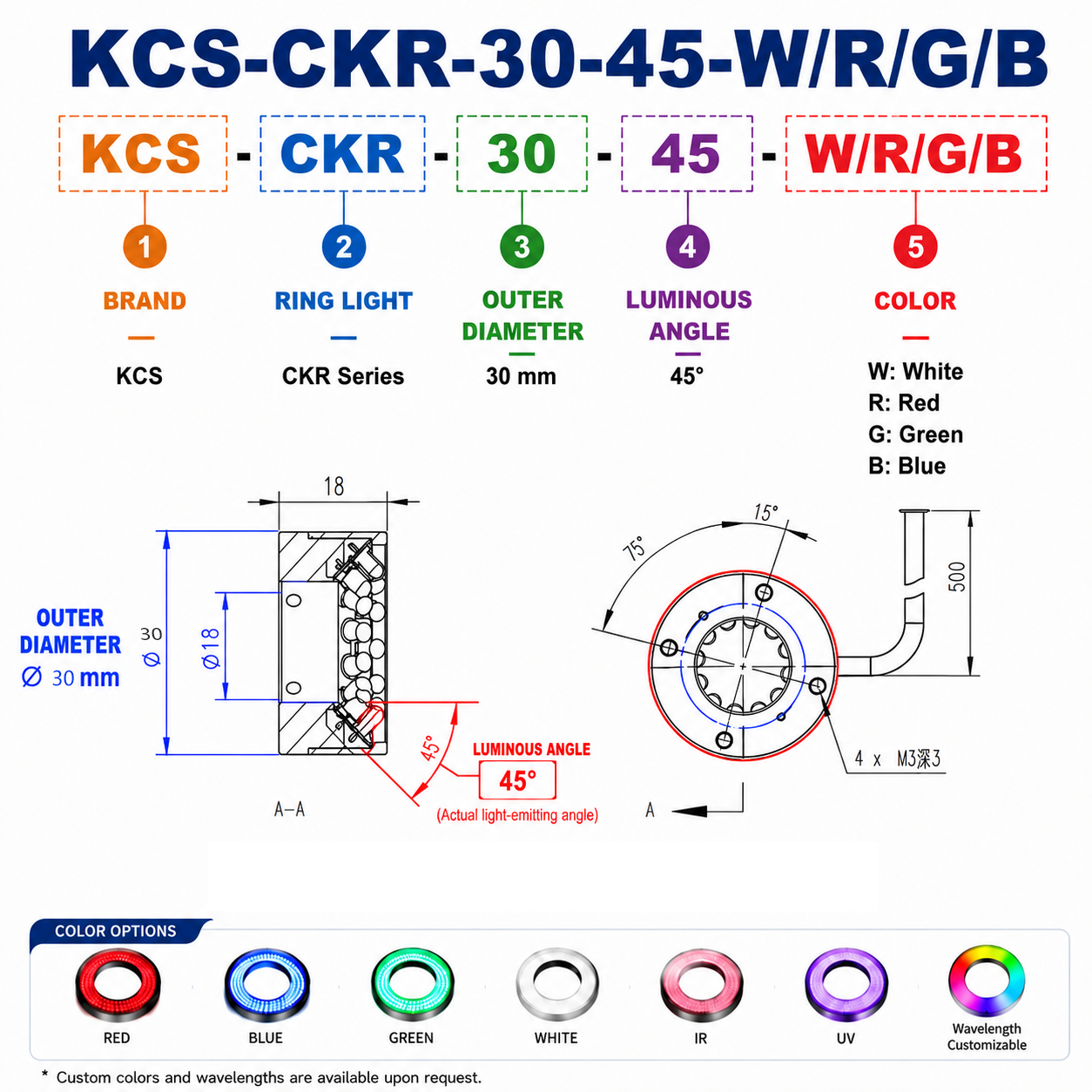

ring-light-pic


Specification

Model

KCS-CKR-30-45

    LED Type

SMD/DIP

Color

white

red

blue

 green

UV

IR

Wavelength

6500K

620-630nm

465-470nm

520-530nm

365-405nm

850/940nm

Input Volt

Default voltage DC24V. Custom DC12V is supported.

Cable length

The default length is 0.5m; extension cables are available in 1m, 2m, 3m, 5m, and 10m lengths.

  Terminal Plug

Default is SM-3PIN, custom connectors are supported.

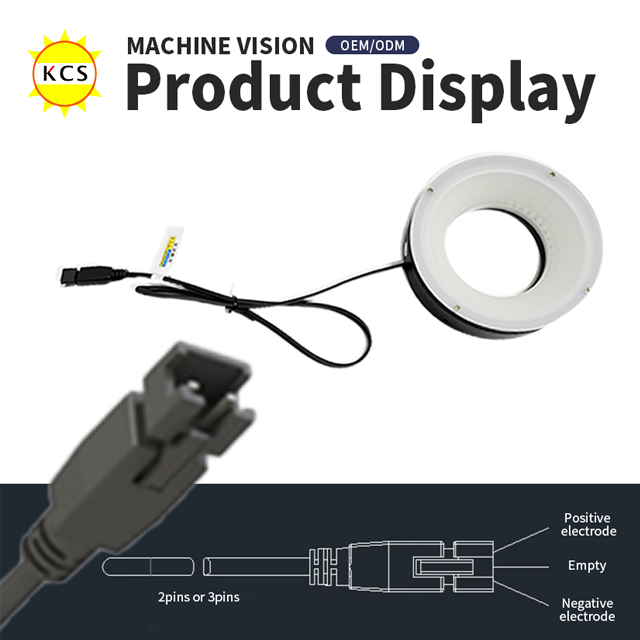

Connector Definition

1 : positive (+) red; 2 : left blank; 3 : negative (-) black.

Shell Material

Aluminum Alloy（Oxidative blackened surface）

Electrical Insulation Capacity

DC500V Insulation resistance >20 megohms

Pressure Resistance Requirements

AC1000V; 10mA/5S

Flammability Rating

IEC60707

Operating Temperature and Humidity

Temperature : 0 to 50ºC, Humidity : 20% to 85%RH (non-condensing)

Lifespan

At an ambient temperature of 25°C, the light source at 100% brightness will experience less than 30% degradation after 10,000 hours of use (excluding ultraviolet light)

Warranty Period

Within one year of shipment, free repair or replacement service will be provided for any non-human-caused malfunctions.

Value Added Services

One year free technical support

Uniform, Shadow-Free Lighting

The unique ring design provides uniform illumination, eliminating shadows and uneven lighting, ensuring the highest quality image capture for visual inspection systems. This allows for precise defect detection and surface inspection. The LED technology offers consistent brightness, enhancing image clarity and accuracy.

High-Brightness LED Technology

Equipped with high-brightness LEDs, the ring light delivers exceptional illumination for even the most challenging inspection tasks. With a luminous flux of up to 1,500 lumens, it ensures clear visibility in low-light conditions. This makes it perfect for applications requiring fine detail, such as electronic component inspection and surface defect detection.

Long Lifespan and Low Energy Consumption

Designed to last up to 50,000 hours, our machine vision ring light offers a long operational life, reducing maintenance costs and downtime. It also consumes less power compared to traditional lighting solutions, contributing to energy savings and sustainability in your automation systems.

Customizable Options for Different Applications

The product is highly customizable, with various sizes and light intensities to fit a wide range of industrial environments. Whether for high-speed inspection or delicate components, you can tailor the lighting to meet your specific needs, ensuring optimal performance in any scenario.

Durable and Reliable in Harsh Environments

Built to withstand harsh industrial environments, the machine vision ring light is dustproof and resistant to vibrations. Its robust design ensures continuous operation in factory settings, ensuring long-term reliability for your automation and inspection systems.

1. Question: What is the minimum order quantity (MOQ) for machine vision lights?

Answer: Our minimum order quantity for machine vision lights is 1 piece.


2. Question: Do you support customized products?

Answer: Yes, we offer customization services. Customers can customize the color, light source type, size, and other parameters of the machine vision lights according to their actual needs to meet the requirements of different application scenarios. Please contact our service team to discuss customization options.


3. Question: What is the product delivery time?

Answer: The delivery time for standard products is usually 3 to 5 working days. For customized products, the delivery time will vary depending on the production plan and customization requirements, usually between 7 and 10 working days.


4. Question: What is the warranty period for machine vision lights?

Answer: We offer a 1-year warranty. During the warranty period, if quality problems occur, we will provide free repair or replacement services.


5. Do you have product certification?

Answer: Yes, we have CE certification for our products.
