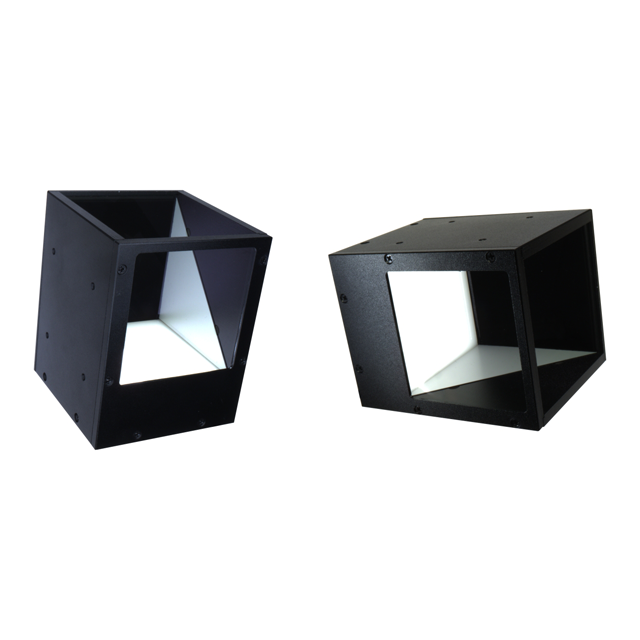

Corner Coaxial Light
| Quantity: | |
|---|---|
Compact Structure for Space-Saving Integration
The corner coaxial light adopts an angled optical path design, allowing the light source to be positioned away from the camera’s vertical axis. This significantly reduces installation height by up to 30–50% compared to standard coaxial lights. It is ideal for compact machine vision systems and automated equipment where vertical space is limited, while still maintaining high-performance illumination.
Keywords: corner coaxial light, compact vision lighting, space-saving illumination
True Coaxial Illumination for Shadow-Free Imaging
By using a high-quality beam splitter and precision optical components, the corner coaxial light delivers uniform, shadow-free illumination along the optical axis. This ensures consistent imaging results, especially for flat and reflective surfaces. The coaxial lighting design minimizes shadows and highlights surface defects with high contrast.
Keywords: coaxial illumination, shadow-free lighting, high contrast inspection
Excellent Performance on Reflective Surfaces

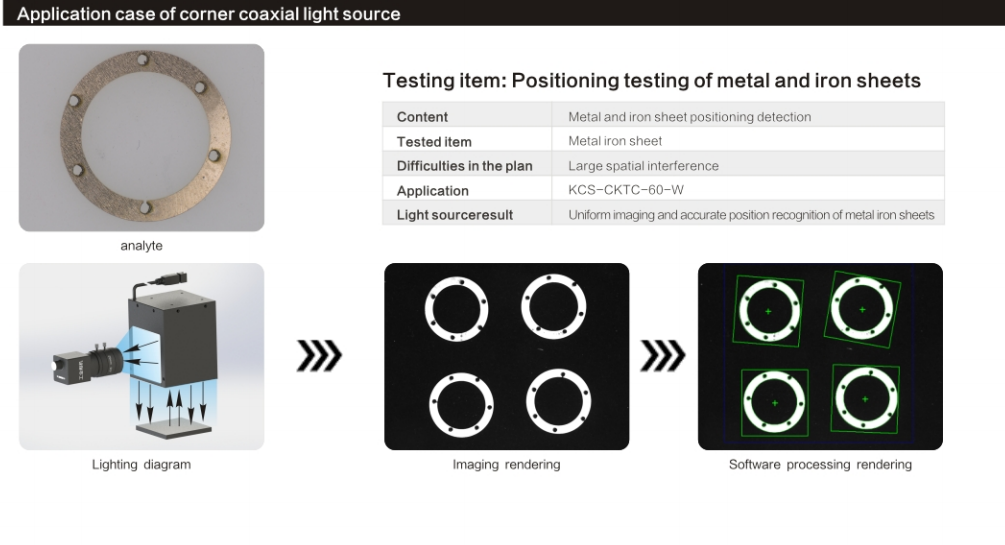

Corner coaxial lights are particularly effective for inspecting mirror-like or highly reflective objects such as polished metal, glass, and electronic components. The coaxial light path reduces specular reflections and glare, improving defect visibility. This makes it ideal for applications like PCB inspection, semiconductor analysis, and precision component inspection.
Keywords: reflective surface inspection, anti-glare lighting, PCB inspection light
High Brightness and Uniform Light Distribution
Equipped with high-intensity LED arrays and advanced optical diffusion technology, the light provides brightness uniformity of up to 90% or higher. Stable light output ensures reliable image acquisition and repeatability in industrial environments. It also supports continuous and strobe lighting modes for high-speed inspection tasks.
Keywords: high brightness LED, uniform illumination, industrial vision lighting
Long Lifespan and Industrial-Grade Reliability
Designed for demanding industrial applications, corner coaxial lights typically offer a lifespan of 30,000–50,000 hours with minimal light decay. The robust housing and efficient heat dissipation system ensure stable performance even in continuous operation. This reduces maintenance costs and enhances system reliability over time.
Keywords: long lifespan LED light, stable performance, machine vision system
