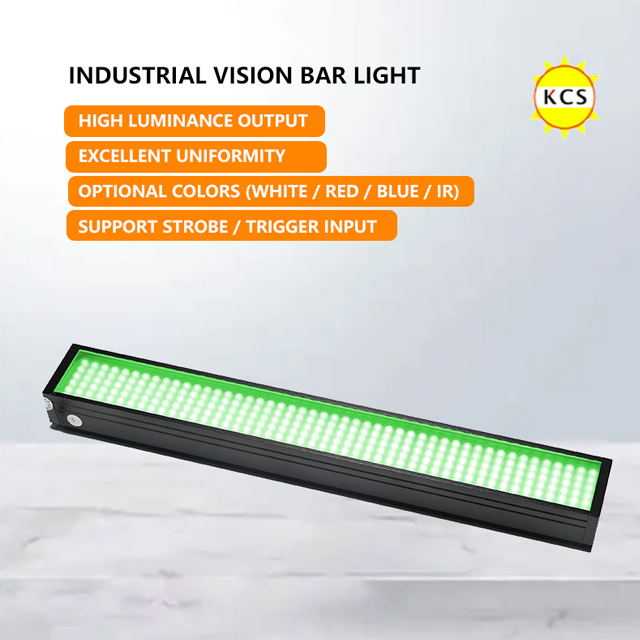

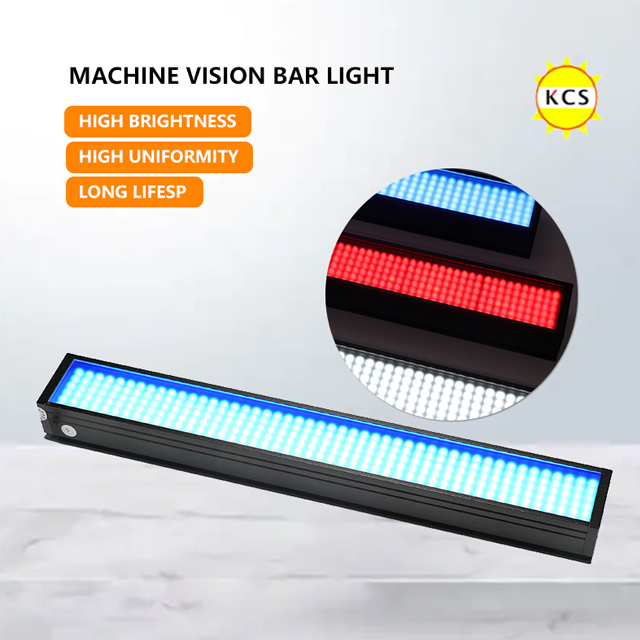

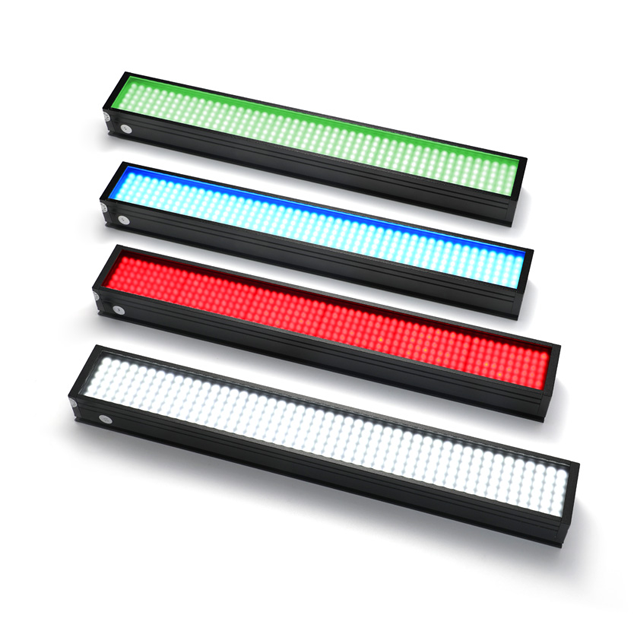

Industrial LED Machine Vision Bar Light

Key Features & Highlights

Elevate your automated visual inspection capabilities with our meticulously engineered linear illumination units. These lights are crafted to solve the most demanding imaging challenges on the production floor.

• Exceptional Image Contrast: By delivering a concentrated, high-intensity beam, the light highlights microscopic surface anomalies, ensuring your cameras never miss a critical defect.

• Shadowless Edge Detection: The precise linear array configuration minimizes unwanted glare and shadows, providing the perfect optical environment for accurate dimensional measurements.

• Thermal Management Architecture: The sleek, finned housing dissipates heat rapidly, keeping the unit cool to the touch and preventing thermal degradation of the LED components during continuous operation.

• Seamless Integration: Designed with a compact footprint and versatile mounting profiles, allowing engineers to effortlessly slide the unit into tight spaces within existing machinery.

Optical Performance & Specifications

Achieving flawless imaging requires uncompromising optical precision. Our linear illumination systems are calibrated to meet the rigorous demands of high-speed industrial cameras, ensuring your data collection is absolutely pristine.

• Unmatched Uniformity: Delivering an illumination uniformity of up to ±5%, ensuring that every pixel across the camera's field of view receives consistent light, entirely eliminating blind spots.

• Red Spectrum (620-630nm): Ideal for penetrating translucent materials and enhancing the contrast of dark, opaque surfaces.

• Green (520-530nm) & Blue (460-470nm) Spectrums: Perfect for inspecting silver or highly reflective metallic components, reducing glare significantly.

• White Light (6500±500K): Provides excellent color reproduction for general-purpose printing and packaging inspection.

• Infrared (850/940nm) & Ultraviolet (365-405nm): Specialized invisible spectrums for penetrating specific polymers or exciting fluorescent inks and adhesives.

• Flicker-Free Output: Engineered with advanced constant-current circuitry, providing a perfectly stable light stream that prevents image banding during ultra-high-speed shutter captures.

Material & Protection Rating

Industrial environments are unforgiving. We construct our illumination solutions to thrive amidst dust, moisture, and mechanical stress, ensuring uninterrupted performance shift after shift.

• Ruggedized Alloy Housing: Encased in a premium, high-strength extrusion that feels incredibly solid, protecting the delicate internal optics from accidental impacts and factory-floor debris.

• Optimized Thermal Dissipation: The physical design incorporates deep cooling channels that passively draw heat away from the core, maintaining optimal operating temperatures without relying on fragile mechanical fans.

• Resilient Optical Window: The front-facing light-emitting surface is shielded by a durable, scratch-resistant barrier that maintains optical clarity even after repeated cleaning with industrial solvents.

• Harsh Environment Readiness: Capable of operating flawlessly in ambient temperatures ranging from 0 to 40°C, and safely stored between -20 and 60°C with 20~80% non-condensing humidity.

System Compatibility & Control

A high-performance light is only as good as its ability to communicate with your broader automation ecosystem. We ensure effortless synchronization with your existing infrastructure to reduce integration headaches.

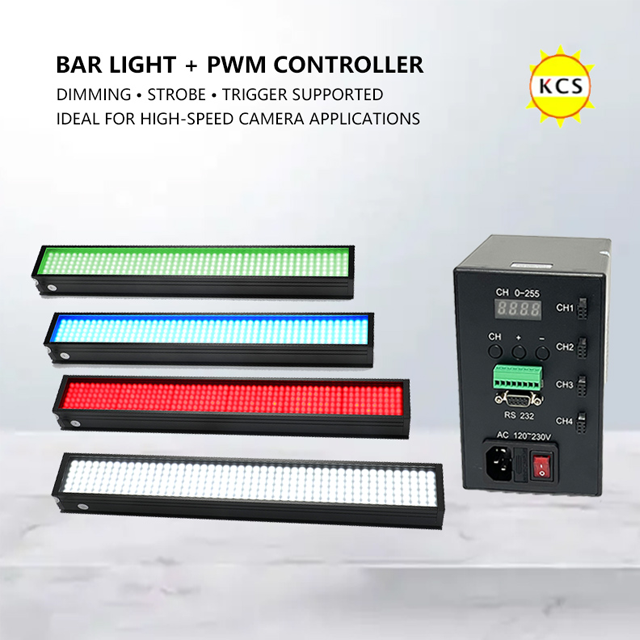

• Versatile Controller Pairing: Fully compatible with our proprietary control units, including the KCS-CKKAC2, KCS-CKKDC, KCS-CKKWDC, and KCS-CKSC series, offering unparalleled command over your lighting environment.

• Precision Dimming: When paired with the appropriate controller, users can achieve smooth, granular adjustments to light intensity, perfectly calibrating the exposure for highly reflective or extremely dark substrates.

• Strobe Synchronization: Designed to react instantaneously to trigger signals, allowing the light to flash in perfect harmony with camera shutters, freezing fast-moving objects without a hint of motion blur.

• Adaptable Cabling: Optional light source extension cables provide the physical flexibility needed to route power and control signals through complex robotic arms and expansive conveyor systems safely.

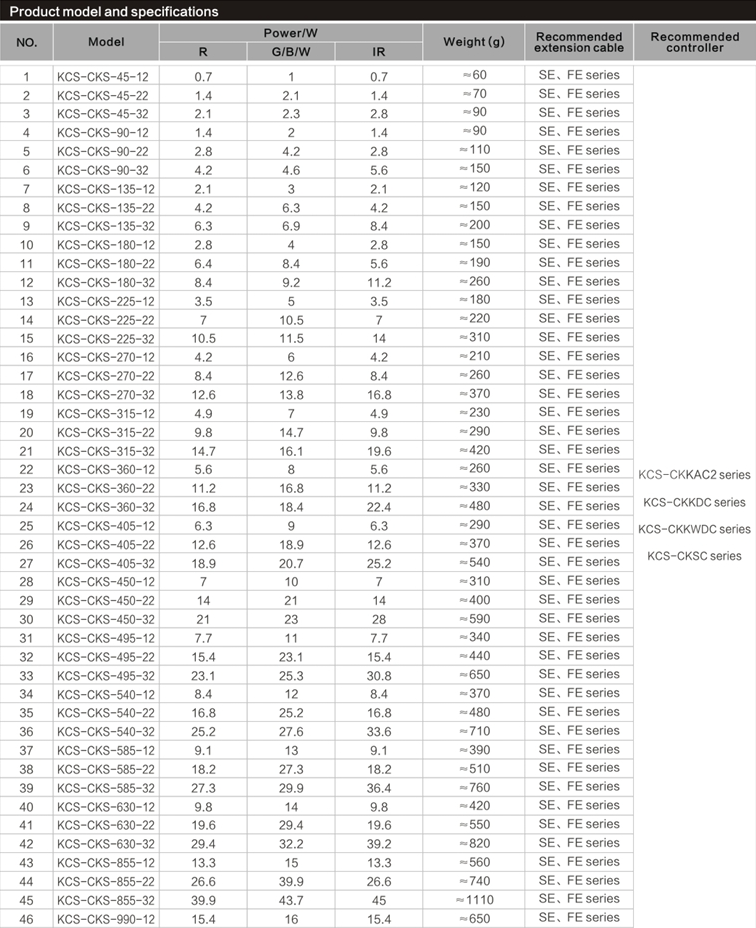

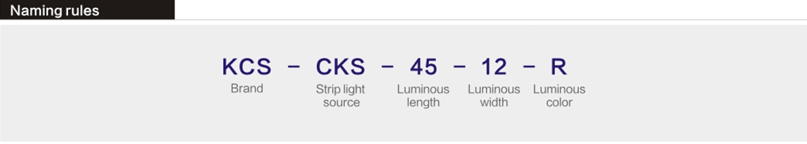

Model List

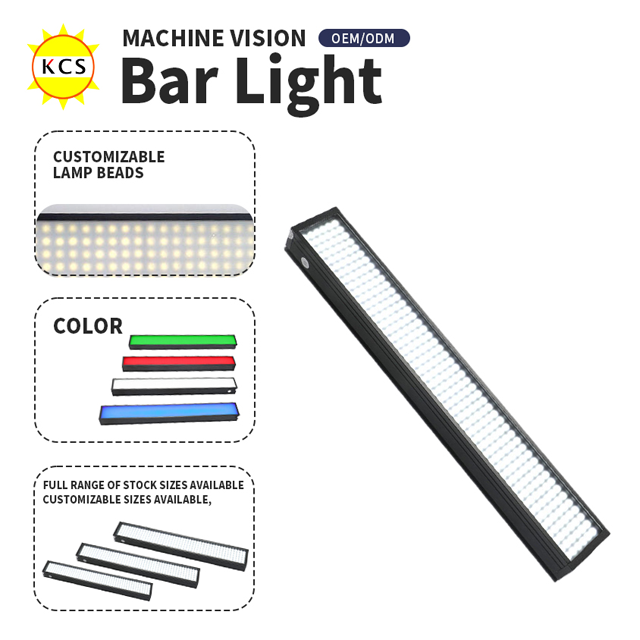

Customization & Adaptability

No two inspection lines are identical. As a dedicated manufacturer, we possess the engineering agility to tailor our illumination solutions to your exact architectural and optical requirements.

• Dimensional Flexibility: We can modify the physical length and width of the housing to perfectly align with the specific field of view required by your unique application.

• Wavelength Tailoring: Beyond standard colors, our engineering team can configure specific LED combinations to enhance the contrast of unique chemical coatings or proprietary materials.

• Beam Angle Modification: By adjusting the internal lens geometry, we can narrow the beam for intense, focused inspection or widen it for broad surface coverage.

• Hardware Modifications: From altering the connector types to match your existing wiring harnesses to redesigning the outer housing for specialized mounting brackets, our OEM/ODM services cover every physical aspect.

• Optical Accessories: Enhance your setup with optional diffuser plates, which soften the output to eliminate harsh glares on highly specular surfaces like polished metals, silicon wafers, or glass.

Quality Control & Certifications

Trust in your equipment is paramount. We subject every single unit to a grueling battery of tests to guarantee it meets the highest international standards of industrial safety and performance.

• CE Certified Compliance: Fully certified to meet stringent European safety, health, and environmental protection requirements, ensuring seamless integration into global facilities.

• Rigorous Burn-in Testing: Before leaving our facility, each unit undergoes extensive continuous-operation testing to identify and eliminate any premature component failures.

• Optical Calibration Verification: We utilize advanced spectrometry and photometric sensors to verify that the wavelength, color temperature, and ±5% uniformity strictly adhere to published specifications.

• Traceable Manufacturing: From the sourcing of individual LED chips to the final assembly of the housing, our production process is meticulously documented, ensuring batch-to-batch consistency for large-scale deployments.

FAQ

• How does the ±5% illumination uniformity impact edge detection accuracy?

  Achieving ±5% uniformity means the light intensity remains virtually identical across the entire emitted surface. This prevents the camera from misinterpreting dark spots as physical defects or shadows as edges, drastically improving the algorithmic accuracy of your vision software and reducing false rejects.

• Can the wavelength be customized for specific material inspections?

  Absolutely. While we offer standard spectrums ranging from UV to IR, our engineering team can tailor the specific wavelength to match the absorption or reflection characteristics of your proprietary materials. This customization maximizes image contrast, making microscopic flaws instantly visible to the camera.

• What thermal management strategies are employed to ensure the 10,000-hour lifespan?

  The unit utilizes a high-density aluminum extrusion with optimized cooling fins. This passive thermal architecture rapidly dissipates the heat generated by the LED arrays, keeping the internal junction temperatures well within safe limits. This prevents premature phosphor degradation and ensures consistent brightness over years of operation.

• How does the unit integrate with high-speed strobe controllers?

  The light is designed with low-latency circuitry that pairs seamlessly with our KCS-CKKDC and KCS-CKSC series controllers. This allows for microsecond-level strobe synchronization with industrial camera shutters, effectively freezing fast-moving objects on conveyor lines and entirely eliminating motion blur from the captured images.

• Are there specific mounting orientations required to maintain performance?

  The robust housing and solid-state design allow the unit to be mounted in any orientation—horizontally, vertically, or inverted. The passive cooling fins are engineered to remain effective regardless of the mounting angle, ensuring consistent thermal management and optical performance even in the tightest machine enclosures.
