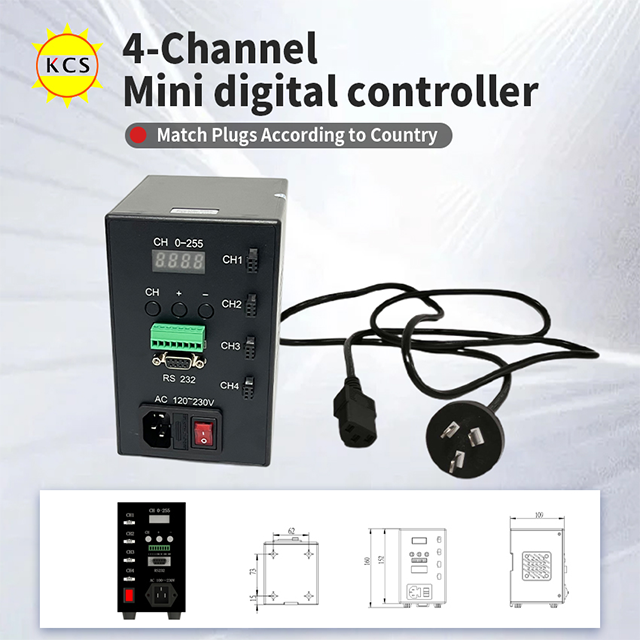

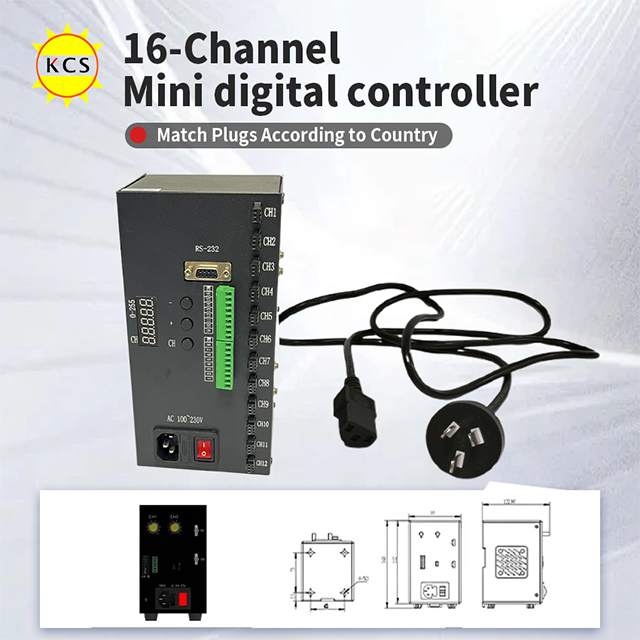

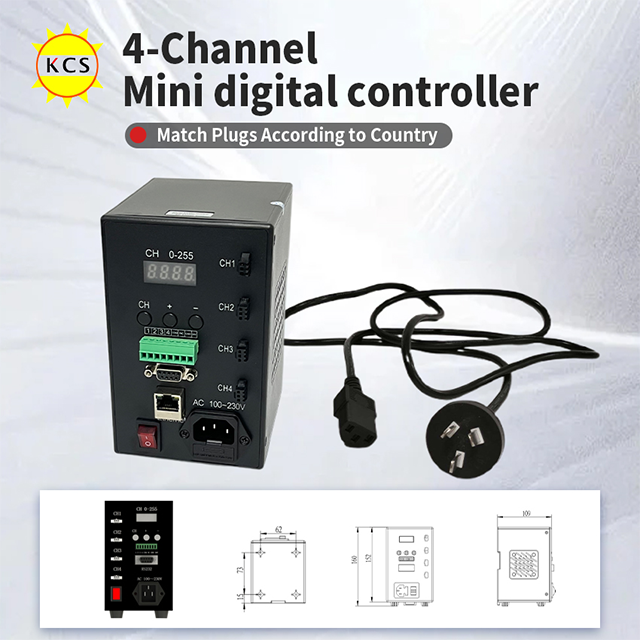

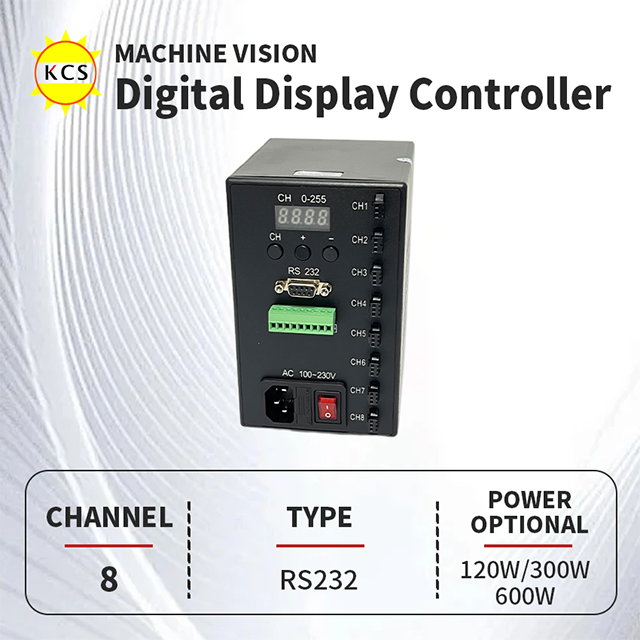

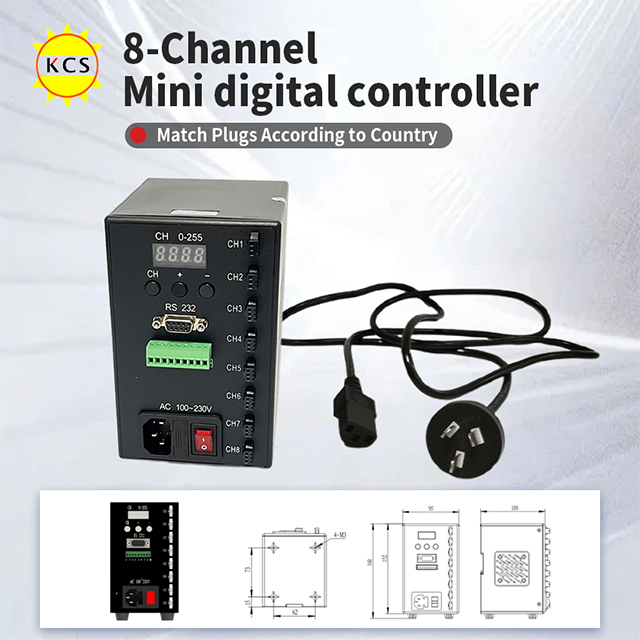

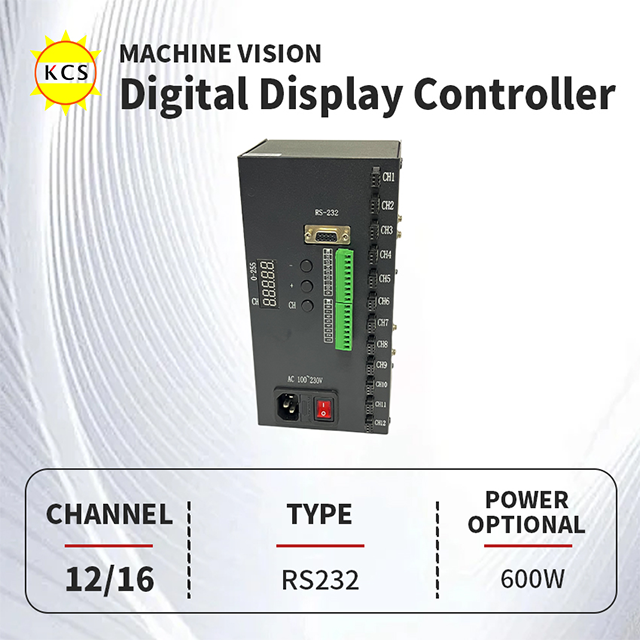

Machine Vision Digital Display Light Controller

Key Features & Highlights

Achieving flawless quality control requires equipment that responds instantaneously and performs consistently under pressure. This controller is designed with an advanced internal architecture to mitigate operational bottlenecks and dramatically enhance your system's overall reliability.

• Intelligent Memory Retention: Never lose your optimal calibration. The built-in memory function automatically restores your exact brightness settings upon powering up. This eliminates repetitive, error-prone setup procedures and minimizes expensive downtime during shift changes or power cycles.

• High-Speed Optocoupler Isolation: The external trigger utilizes premium high-speed optocoupler isolation, ensuring a lightning-fast response while actively shielding your delicate internal circuitry from voltage spikes and electrical noise that are common in heavy industrial environments.

• Dynamic Strobe Synchronization: Perfectly synchronize your lighting with high-speed camera shutters. The flexible high/low-level external trigger empowers your system to freeze motion on fast-moving conveyor belts, completely eradicating motion blur and ensuring pristine image capture.

• Seamless Thermal Management: Housed in a precision-engineered casing with an active cooling fan, the unit dissipates heat efficiently. This prevents thermal throttling, guarantees 24/7 operational stability, and significantly extends the lifespan of both the controller and the connected lighting arrays.

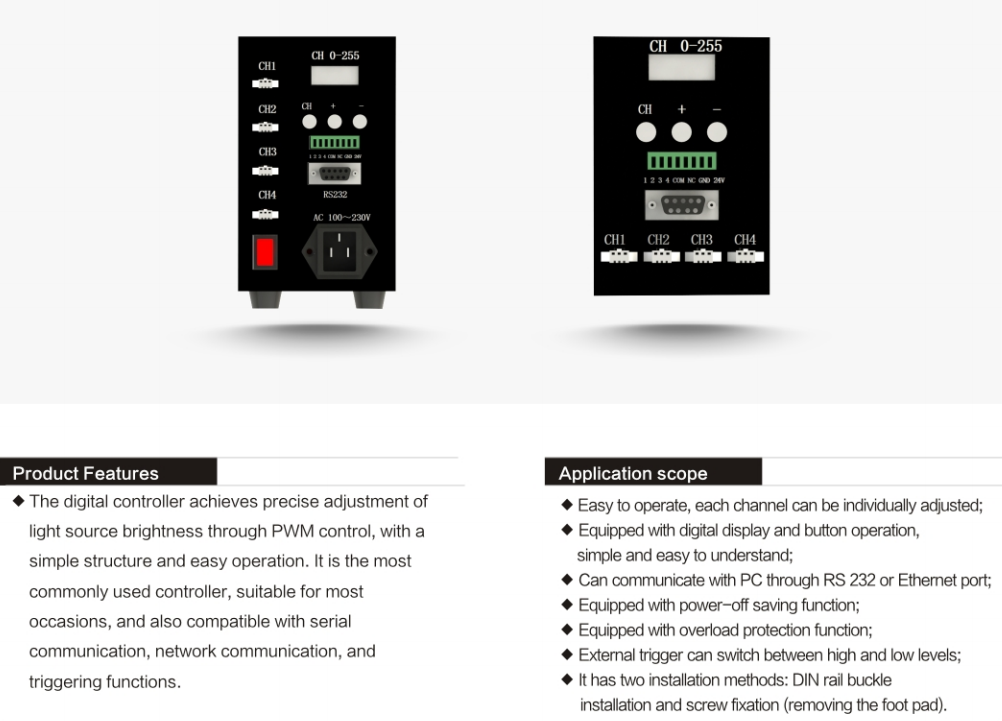

• Intuitive Tactile Interface: The front panel boasts highly responsive touch-sensitive switches alongside a luminous, easy-to-read digital display. This grants operators immediate visual confirmation of channel and brightness values, allowing for rapid adjustments without navigating complex, time-consuming menus.

Comprehensive Application Dimensions

Our digital display controller is not just a power source; it is a critical enabler for advanced machine vision applications across diverse manufacturing sectors. It adapts to the unique optical demands of various industries, ensuring your stringent inspection criteria are met with uncompromising accuracy.

• Electronics & PCB Inspection: Delivers the exact lighting timing and intensity required to identify microscopic soldering defects, component misalignments, and trace anomalies on high-density printed circuit boards, ensuring the reliability of consumer and industrial electronics.

• Automotive Surface Profiling: Enhances the visibility of minute scratches, dents, and coating imperfections on automotive components like bumpers, mirrors, and dashboards. This guarantees that every single part meets stringent aesthetic and structural standards before final assembly.

• Packaging & Print Verification: Manages complex lighting setups to instantly detect label misalignments, barcode printing errors, and structural damage on high-speed packaging lines, effectively protecting your brand's integrity and preventing costly product recalls.

• Textile Quality Assurance: Maintains consistent brightness and high contrast to reveal subtle fabric tears, color mismatches, and weaving inconsistencies. This precision lighting is essential for maintaining premium quality standards in large-scale garment production.

• Vision System Calibration: Serves as a reliable, highly stable baseline power source for testing and calibrating complex vision architectures. It reduces the necessity for manual interventions and lighting tweaks during high-volume, continuous production runs.

• Broad System Compatibility: Effortlessly interfaces with mainstream industrial cameras, PLC networks, and SCADA systems via supported communication protocols. It acts as a highly versatile, intelligent node within your broader smart factory ecosystem.

FAQ

• What is the minimum order quantity for this digital display controller?

  We maintain a highly flexible production model to support your testing phases. The minimum order quantity is just 1 piece, allowing your engineering team to acquire a single unit for rigorous prototyping and system validation before committing to larger volume rollouts.

• Can the trigger delay accommodate ultra-high-speed line scan cameras?

  Yes, absolutely. The controller features an exceptional trigger delay of strictly less than 7 microseconds (<7us). Coupled with high-speed optocoupler isolation, it provides the near-instantaneous response required for high-speed line scan and area scan applications without missing a single frame.

• How does the controller handle potential electrical faults on the factory floor?

  The device is engineered with robust, industrial-grade safeguards, including automatic overload protection and short-circuit defense. If a connected light source draws excessive current, the controller automatically intervenes to prevent catastrophic damage to both the drive unit and the expensive lighting array.

• Is it possible to integrate this controller into our existing SCADA or PLC network?

  Yes. The controller's architecture is designed for modern smart factories. It supports advanced communication protocols, including RS232 serial and Ethernet connectivity, allowing for seamless remote parameter adjustments, synchronization, and real-time status monitoring directly from your central control interface.

• What are the specific environmental tolerances for continuous 24/7 operation?

  The unit is meticulously designed to operate flawlessly in ambient temperatures ranging from 0 to 40°C with a relative humidity of 20% to 85% (non-condensing). The integrated active cooling fan ensures optimal thermal stability, even during continuous, round-the-clock operation inside enclosed industrial control cabinets.
