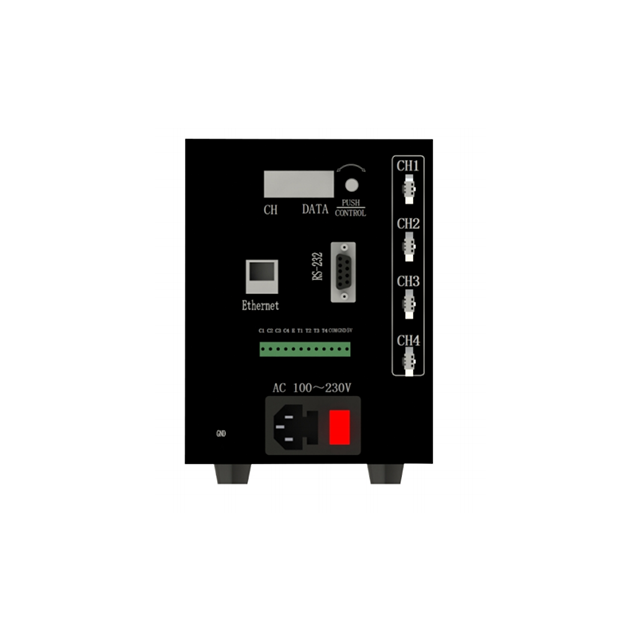

Machine Vision Strobe Controller
| Quantity: | |
|---|---|
The strobe controller is a high-performance LED light source controller developed by our company. Unlike conventional light source controllers, the strobe controller switches the output voltage on and off according to a preset pulse width to control the strobe lighting of the LED light source. When the output voltage is active, its voltage value is generally more than double that of conventional controllers (for example, for a 24 VDC LED light source, the output voltage can reach 48 VDC), and the maximum conduction time does not exceed 1000 μs. Therefore, the strobe controller can significantly increase the instantaneous brightness of the LED light source. At the same time, because the light source is illuminated for a short duration, internal heating of the LED is suppressed, thereby greatly extending the service life of the light source.

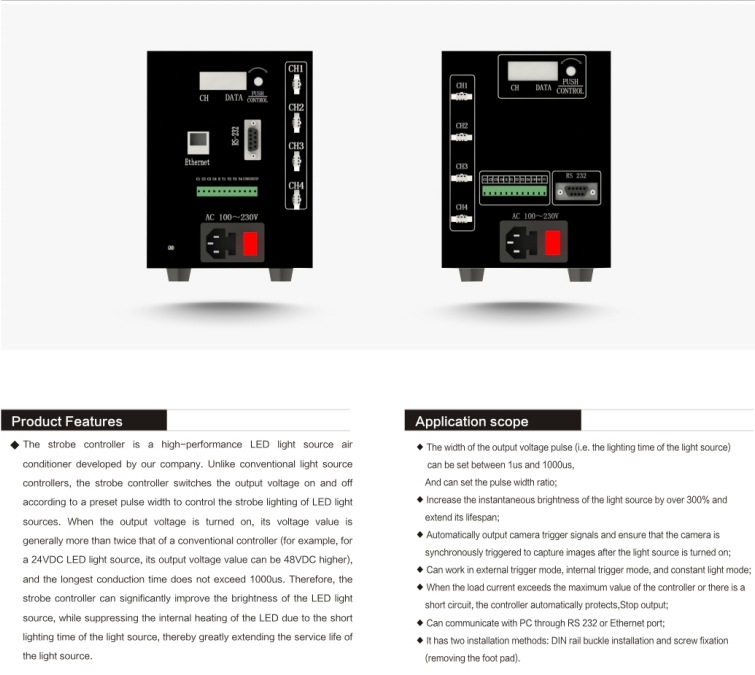

Product Features
• The pulse width of the output voltage (i.e., the light source’s on-time) can be set between 1 μs and 1000 μs, and the duty cycle can be adjusted;
• Increases the instantaneous brightness of the light source by over 300% and extends its service life;
• Automatically outputs a camera trigger signal and ensures the camera captures images synchronously after the light source turns on;
• Operates in external trigger mode, internal trigger mode, and constant-on mode;
• The controller automatically shuts down and stops output when the load current exceeds the maximum limit or in the event of a short circuit;
• Communicates with a PC via RS-232 or Ethernet;
• Offers two mounting options: DIN rail clip-on installation and screw-mounted installation (after removing the rubber feet)
