A fundamental rule governs automated inspection: 90% of machine vision failures stem from suboptimal lighting, rather than insufficient camera resolution or software algorithms. Many facilities still rely on ambient factory light or basic commercial fixtures for their inspection lines. This oversight frequently causes false rejects, inconsistent contrast, and costly system downtime. You cannot expect a vision sensor to reliably detect microscopic flaws if shadows obscure the target area. Our objective here is to provide an evidence-based framework for evaluating and selecting the correct machine vision light topologies. We base this framework strictly on part geometry, material reflectivity, and inspection environment realities. By understanding how photons interact with different surfaces, you will learn exactly how to match your illumination strategy to your specific industrial inspection challenges.

Key Takeaways

• Contrast is the primary metric: The goal of a machine vision light is not general illumination, but maximizing contrast between the defect/feature and its background.

• Geometry dictates topology: Specular (reflective) and diffuse (matte) surfaces require fundamentally different lighting structures (e.g., coaxial vs. bar lighting).

• Wavelength matters: Utilizing specific color spectrums (IR, UV, or monochromatic light) often solves inspection challenges that structural lighting alone cannot.

• Thermal management is critical: Continuous over-driving of LEDs degrades lifespan and intensity; strobe controllers are essential for high-speed automated lines.

1. The Cost of Poor Illumination in Automated Inspection

Inadequate lighting introduces severe operational risks to any production line. It creates harsh shadows, unpredictable glare, and highly inconsistent pixel values across the camera sensor. These physical artifacts actively confuse vision algorithms. The software registers normal surface variations as critical defects. Conversely, poor illumination washes out genuine flaws, rendering them completely invisible to the automated system.

This optical unreliability carries a heavy business impact. High false-positive rates mean you scrap perfectly good parts. You waste valuable materials and reduce overall line yield. High false-negative rates pose an even greater threat. Passing defective parts leads to severe compliance risks, customer complaints, and potential product recalls. When automated systems fail due to bad lighting, manual rework becomes necessary. Operators must double-check parts by hand, defeating the entire purpose of automation.

To avoid these pitfalls, we must define strict success criteria. An optimized image requires a high signal-to-noise ratio. You need sharp edge gradients to measure dimensions accurately. A uniform background ensures the software only analyzes the target feature. Achieving this requires precise, engineered control over how photons hit the inspected object.

2. Core Machine Vision Light Types and Evaluation Criteria

Machine Vision Bar Light

A standard machine vision bar light consists of rectangular arrays of LEDs. They provide strong, directional illumination across a specific target area. Engineers typically mount them at an angle relative to the camera lens. They excel at creating strategic shadows. This technique highlights 3D topographical defects like shallow scratches, embossing, or stamped characters. They work best on flat, matte surfaces. However, they have distinct limitations. If you point them at highly reflective materials, they create intense hotspots. This blinding glare washes out the optical image entirely.

Machine Vision Ring Light

A machine vision ring light provides continuous circular illumination. You usually mount it directly to the camera lens. It ensures the light source and optical axis share the exact same center.

Integrators deploy them in two primary configurations: brightfield and darkfield.

• High-angle (Brightfield): These models deliver uniform frontal illumination. They are ideal for general inspection tasks and label verification.

• Low-angle (Darkfield): These models cast glancing illumination across the surface. This very low angle highlights surface edge defects, laser etching, and shallow engravings.

Despite their immense versatility, they pose certain challenges. On highly specular objects, they often cause central glare. This circular "halo" effect obscures critical central inspection zones.

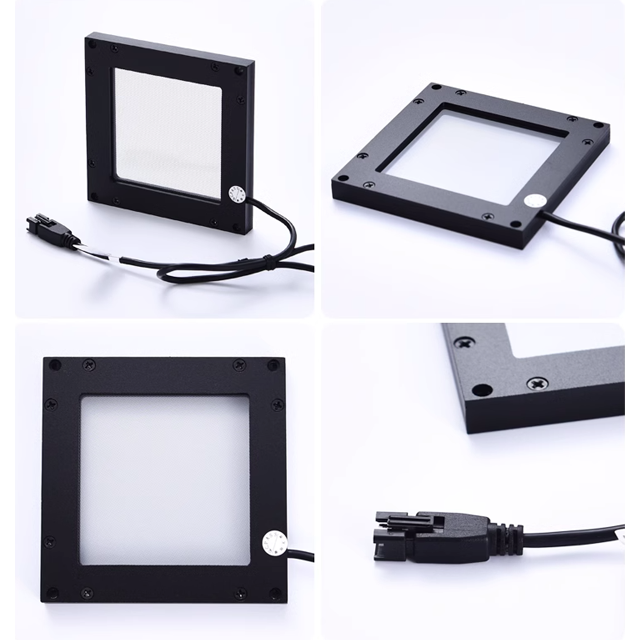

Coaxial Machine Vision Light

A coaxial machine vision light uses a specialized half-mirror beam splitter. This internal mirror directs light perfectly parallel to the camera's optical axis. The lens looks directly through the illuminated path.

They are ideal for inspecting highly specular, flat surfaces. Common industrial examples include polished metal, semiconductor wafers, and flat glass. The parallel rays reflect straight back into the lens. Any defect on the surface scatters the light, appearing perfectly dark against a bright white background. Their main limitation is inefficient light transmission. The beam splitter absorbs much of the LED output. They require much higher intensity levels to compensate. Furthermore, they are completely ineffective on highly curved surfaces.

Dome Lights (Cloudy Day Illuminators)

Dome lights frequently earn the nickname "cloudy day illuminators." They use indirect, highly diffused light. The internal LEDs face upward, reflecting off a bright spherical inner interior.

This specific geometry eliminates harsh shadows and directional glare. They bathe the target in uniform light from every possible angle. They represent the best possible solution for complex, curved, or crinkled reflective surfaces. You will frequently see them used to inspect foil packaging, shiny ball bearings, and contoured aluminum castings.

Backlights

Backlights follow a very different topological logic. You place them directly behind the target object. They point straight into the camera lens. This configuration creates a high-contrast black silhouette of the object against a white background. They are unmatched for precise edge detection. When you need exact dimensional measurements or outer profile verifications, backlighting provides the sharpest edge gradients possible.

3. Matching Lighting Topologies to Material Characteristics

Opaque vs. Translucent Materials

Material properties strictly govern your illumination choices. You must evaluate transmission rates first. Opaque materials block all light, requiring frontal illumination techniques. Translucent materials, like certain plastics or resins, allow partial transmission. In these cases, backlighting reveals internal voids or foreign contaminants. Alternatively, specialized IR penetration helps the sensor "see through" colored but optically transparent polymers.

Specular vs. Diffuse Surfaces

Surface reflectivity acts as your next critical variable. You must respect the primary rule of optical incidence: the angle of reflection equals the angle of incidence. Specular surfaces act exactly like mirrors. If you point a focused beam at them, they bounce it directly into the sensor. This blinds the camera and ruins the image. To inspect specular targets, you need diffused dome sources or parallel coaxial structures. Diffuse surfaces, like matte paper or unpolished rubber, scatter light naturally. They tolerate directional sources much better and often require them to generate adequate contrast.

Surface Texture Complexity

Finally, analyze the geometrical complexity of the part. Flat surfaces play nicely with highly structured, directional beams. You can easily calculate where the light will bounce. Curved geometries scatter reflections unpredictably across the field of view. Complex textures usually demand heavily diffused light. A uniform dome prevents the rough texture itself from appearing as a false defect.

Common Best Practices for Material Matching:

• Never use directional bar fixtures on curved, mirrored parts.

• Always test backlighting first for any dimensional measurement requirement.

• Use darkfield angles specifically when looking for scratches on flat metal.

Material and Geometry Illumination Matrix

4. Wavelength Selection: Maximizing Optical Contrast

Color Wheel Filtering

Structural geometry is only half the equation. Wavelength selection often solves inspection challenges that physical placement cannot. The fundamental technique involves color wheel filtering. We use opposite colors on the spectrum to darken specific features. For example, hitting a green feature with a red LED makes it appear completely dark to a monochrome sensor. Conversely, we use similar colors to lighten backgrounds. A red light makes a red background appear bright white. This artificially boosts the contrast ratio between the defect and the surrounding material.

Infrared (IR)

Infrared wavelengths operate outside human visibility. They offer unique physical properties for industrial inspection tasks. IR easily penetrates many opaque plastics. It allows cameras to verify internal liquid levels inside dark bottles. Furthermore, IR works brilliantly in environments experiencing high ambient light interference. By equipping the camera with an IR bandpass filter, you block all visible factory lighting. The sensor only registers the controlled IR strobes from your equipment.

Ultraviolet (UV)

Ultraviolet wavelengths solve complex presence/absence verification tasks. UV light induces fluorescence in many industrial materials. It causes certain adhesives, security inks, and clear greases to glow brightly. When you shine UV onto a target, the hidden material emits visible light. This transforms an invisible bead of clear glue into a glowing beacon for the camera to inspect.

Polarization

Non-metallic reflective surfaces often generate blinding glare. Think of clear plastic wrapping stretched over a cardboard box. Wavelength polarization solves this issue. You utilize polarizing filters on both the LED source and the camera lens. By crossing their orientation axes at 90 degrees, you eliminate the specular glare. This allows the sensor to see cleanly through the shiny plastic film and inspect the underlying barcode.

5. Implementation Realities, Scalability, and Risks

Continuous vs. Strobe Lighting

Theoretical designs must survive real-world factory conditions. Running LEDs in continuous mode presents significant risks on fast lines. High-speed applications suffer from severe motion blur if the camera shutter stays open too long. The solution requires hardware strobe controllers. They fire short, intense bursts of illumination synchronized exactly to the camera shutter. Strobing freezes the motion perfectly. It also prevents thermal degradation. You extend the LED lifespan dramatically by allowing them to cool down between flashes.

Form Factor and Mounting Constraints

Space remains a premium resource in automated manufacturing cells. You must address form factor early in the design phase. Existing machine enclosures and robotic end-effectors rarely accommodate bulky fixtures. A massive dome fixture might provide perfect optical results, but it will never fit inside a compact pick-and-place robot head. You must balance optical ideal scenarios against the physical realities of the machine footprint.

Environmental Ratings (IP)

Finally, respect the operating environment. Food, beverage, and pharmaceutical facilities require strict sanitation protocols. Washdown environments rely on high-pressure, high-temperature chemical sprays. Standard aluminum housings will fail immediately here. You must mandate IP67 or IP69K rated enclosures. These robust housings protect sensitive internal electronics from water ingress and corrosive cleaning agents.

6. Shortlisting Framework: Next Steps for Integration

Selecting the perfect hardware demands a systematic approach. Follow this four-step framework to narrow down your options efficiently:

1. Step 1: Define the defect/feature. Determine exactly what you are trying to see. Is the defect topological like a scratch? Is it color-based like a missing safety label? Or is it dimensional, requiring precise edge measurement?

2. Step 2: Assess the material and geometry. Categorize the target object. Identify whether the surface is highly reflective or deeply matte. Note whether the geometry is uniformly flat or aggressively curved.

3. Step 3: Establish working distance and field of view (FOV). Measure the physical space available. Ensure the chosen fixture maintains optical uniformity across the entire inspection zone from that specific working distance.

4. Step 4: Conduct a Proof of Concept (PoC). Never skip physical testing. Software simulations cannot perfectly replicate ambient interference or micro-textures. Physical testing with a vision integrator or lab is non-negotiable before final procurement.

Conclusion

Machine vision hardware selection represents a geometric and physics-based decision process. It is never a generic hardware purchase. Suboptimal choices directly cause false rejects and line stoppages. You must prioritize contrast generation over raw brightness in every scenario. Evaluate your target material's reflectivity, analyze its physical geometry, and leverage specific wavelengths to isolate critical defects.

As a final recommendation, collaborate heavily with an experienced system integrator. Always request loaner equipment from manufacturers. You must validate your chosen topology on actual production parts under real factory conditions before scaling your deployment across multiple lines.

FAQ

Q: Why can't I just use standard commercial LED panels for machine vision?

A: Standard commercial panels lack uniform intensity and precise wavelength control. They also suffer from unpredictable strobing or flicker that human eyes cannot see, but high-speed cameras capture easily. This leads to inconsistent camera readings, rendering vision algorithms completely unreliable for accurate inspection tasks.

Q: How do I block out ambient factory lighting?

A: The most effective method is using specific wavelength lighting, such as infrared (IR) or narrow-band red LEDs. You pair this source with a matching bandpass filter screwed onto the camera lens. The filter blocks all other light sources, only allowing your controlled inspection light to reach the sensor.

Q: When should I use a darkfield ring light instead of a brightfield ring light?

A: You should use a darkfield (low angle) configuration when you need to highlight raised or indented features on a flat background. The glancing light angle skips over the flat surface but catches the edges of scratches, stamped text, or laser etchings, making them glow against a dark background.

Q: What causes LED degradation in machine vision lights?

A: Excessive heat is the primary cause of LED degradation. Continuous operation at high intensity levels destroys the internal diodes over time, causing output to drop rapidly. You mitigate this by ensuring proper heat sinking and utilizing strobe controllers to pulse the LEDs only when the camera triggers.
