10MP Industrial Machine Vision C Mount Lens

Key Features & Highlights

Deploying the right optical equipment is the difference between a streamlined, highly profitable production floor and one plagued by bottlenecks. This lens is engineered to directly solve the most pressing challenges in automated visual inspection, ensuring your operations run faster, smarter, and with absolute precision.

• Uncompromising Defect Recognition: The 10-megapixel resolving power ensures that even the most microscopic surface scratches, solder bridges, or material inconsistencies are captured with striking clarity, preventing defective units from reaching your clients.

• Zero-Drift Mechanical Locking: Equipped with robust locking screws for both focus and aperture. Once your technicians set the optimal parameters, the tactile, knurled knobs lock firmly into place, completely eliminating focal drift caused by heavy machinery vibrations.

• Space-Optimized Footprint: The highly compact structural design allows this lens to be mounted in incredibly tight spaces within complex robotic arms or enclosed automated optical inspection (AOI) machines without interfering with moving parts.

• Thermal Resilience: Built to perform flawlessly across a wide temperature spectrum (-20°C to +60°C). Whether installed in a freezing storage facility or a high-heat manufacturing plant, the optical alignment remains perfectly stable.

Optical Performance & Imaging Quality

Achieving flawless visual data is paramount for any automated system. This lens is specifically optimized for 10-megapixel high-resolution sensors, delivering an imaging experience characterized by high contrast and exceptionally low distortion rates.

• Edge-to-Edge Sharpness: Eliminates the common issue of corner blurring, ensuring that objects at the periphery of the frame are analyzed with the exact same pixel-perfect accuracy as those in the dead center.

• Micro-Detail Capture: Empowers your machine vision algorithms to easily identify micro-cracks and dimensional deviations, significantly boosting the reliability of your quality control outputs.

• Distortion-Free Geometry: With distortion rates pushed to absolute minimums (as low as -0.016% on specific focal lengths), your measurement software receives true-to-life geometric data, eliminating the need for complex software-side image correction.

Broad Compatibility & Integration

We understand that upgrading optical components shouldn't require a complete overhaul of your existing infrastructure. This lens is designed for maximum versatility, seamlessly blending into your current technological ecosystem.

• Universal C-Mount Interface: Features an industry-standard C-Mount thread, making it instantly compatible with a vast array of 2/3-inch and smaller industrial camera sensors, including highly popular Sony IMX configurations.

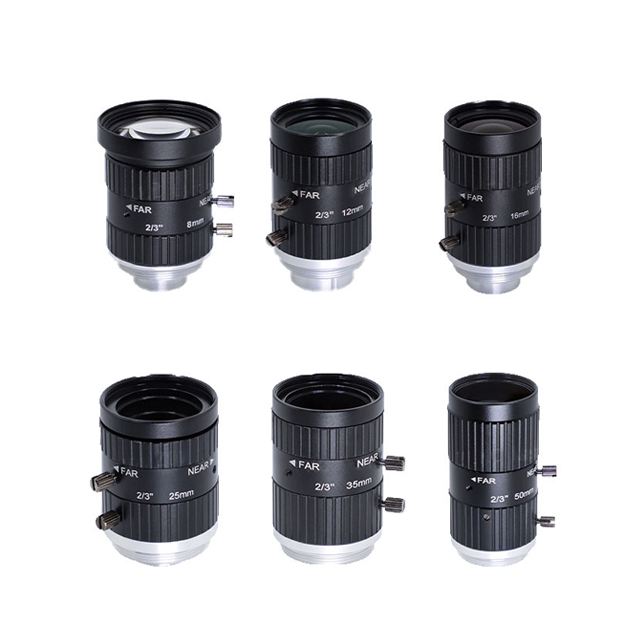

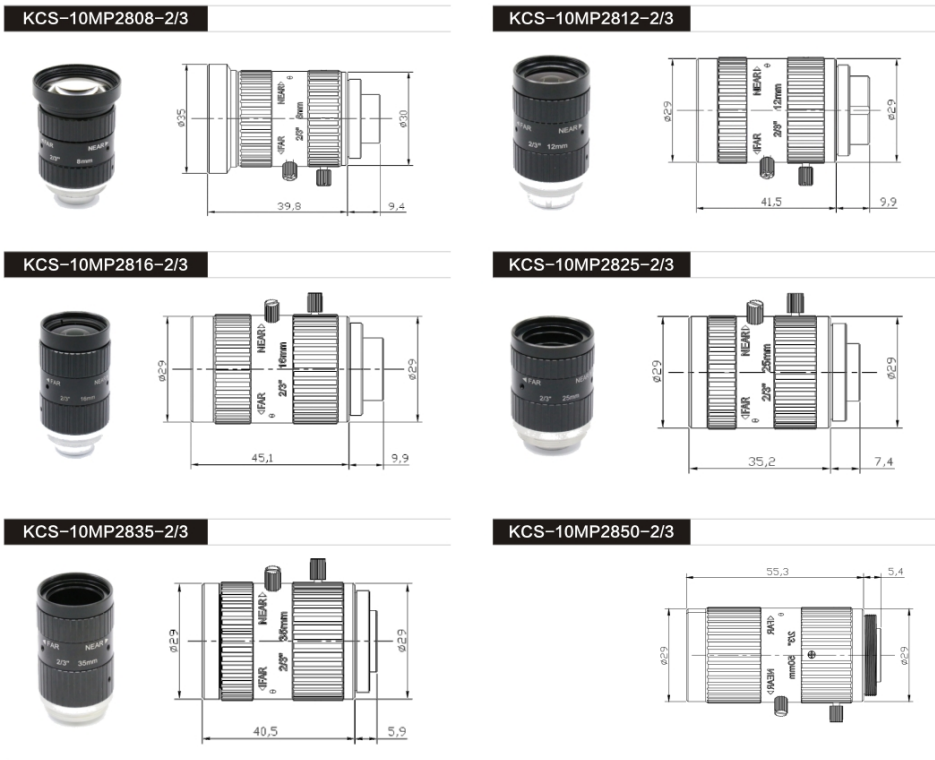

• Versatile Focal Options: Available in a comprehensive suite of focal lengths ranging from a wide 8mm up to a highly magnified 50mm. This allows engineers to perfectly match the lens to specific working distances and field-of-view requirements.

• Plug-and-Play Deployment: The standardized mounting and modular architecture drastically reduce installation time, allowing your maintenance teams to swap optics and resume production with minimal downtime.

Industrial Reliability & Anti-Vibration Design

Industrial environments are unforgiving, filled with airborne particulates, fluctuating temperatures, and relentless mechanical shocks. We built this lens to thrive exactly where fragile consumer optics fail.

• Heavy-Duty Metal Chassis: The cold, solid metal housing provides an impenetrable shield against factory dust, accidental impacts, and daily wear-and-tear, ensuring years of uninterrupted service.

• Shock-Resistant Internals: The internal glass elements are securely bedded to absorb intense kinetic vibrations from stamping presses, conveyor belts, and robotic movements without losing optical centering.

• Extreme Climate Operation: Engineered to maintain peak performance whether operating in sub-zero industrial freezers (-20°C) or near heat-intensive curing ovens (+60°C), preventing thermal expansion from ruining your focus.

Advanced Coating & Light Control

Lighting conditions on a factory floor are rarely perfect. To combat glare, reflections, and low-light scenarios, this lens incorporates sophisticated optical treatments that guarantee pristine image capture.

• Broadband Multi-Layer Coating: Each glass element is treated with advanced coatings that maximize light transmission across a wide 420-1000nm spectrum, seamlessly transitioning from visible light into the near-infrared (NIR) range.

• Stray Light Suppression: Effectively neutralizes internal reflections, ghosting, and harsh glare from metallic components or bright LED ring lights, ensuring the sensor only receives pure, actionable visual data.

• Exceptional Color Fidelity: By utilizing low-dispersion glass, the lens prevents chromatic aberration (color fringing). This guarantees that color-sorting machines and material analysis systems receive highly accurate, true-to-life color representations.

Precise Adjustment & Stability

In high-stakes manufacturing, a millimeter of focal drift can result in thousands of rejected parts. We engineered the adjustment mechanisms of this lens to offer both surgical precision and rock-solid permanence.

• Tactile Manual Tuning: The focus and iris rings offer a smooth, highly responsive, and weighted tactile feel, allowing calibration engineers to dial in the exact depth of field and exposure with absolute confidence.

• Industrial Locking Screws: Once the perfect image is achieved, heavy-duty locking thumb-screws secure the rings in place. This mechanical lock guarantees that the settings remain completely immobilized, regardless of environmental vibrations.

• Consistent Dynamic Tracking: The unwavering stability of the aperture and focus ensures that high-speed cameras tracking rapidly moving objects on a conveyor belt maintain identical exposure and sharpness from the first shift to the last.

Core Industrial Applications

This optical powerhouse is not a generic tool; it is a specialized instrument designed to elevate the most demanding commercial and industrial applications, directly driving up yield rates and operational efficiency.

• Electronics & PCB Inspection: Instantly resolves microscopic solder joints, missing surface-mount components, and trace defects, drastically enhancing the accuracy of your Automated Optical Inspection (AOI) machines.

• Robotic Vision Guidance: Provides the crystal-clear spatial data required for robotic arms to perform high-speed sorting, precise picking, and micro-assembly without hesitation or error.

• Precision Component Measurement: Ideal for the automotive and aerospace sectors, capturing the finest geometric tolerances of machined parts to ensure they meet strict regulatory and safety standards.

• Laboratory & Material Analysis: Delivers the exact color reproduction and high-contrast detail necessary for rigorous metallurgical testing, chemical analysis, and research documentation.

Flexible Sourcing & Tailored Engineering Solutions

As a direct manufacturer, we bypass traditional retail hurdles to offer commercial buyers unparalleled flexibility, rapid scalability, and dedicated engineering support tailored to your specific project demands.

• Agile Order Fulfillment: We support highly flexible procurement strategies, starting with a Minimum Order Quantity (MOQ) of just 1 unit for prototyping, while easily scaling to fulfill massive volume rollouts.

• Rapid Global Delivery: Standard inventory items are dispatched within a swift 3 to 5 working days, ensuring your critical automation upgrades are never delayed by supply chain bottlenecks.

• Comprehensive Customization: Our in-house engineering team provides deep OEM/ODM services. From modifying the housing dimensions and altering thread sizes to adjusting specific optical coatings, we build the exact lens your proprietary system requires.

• Certified Quality Assurance: Every lens arrives fully CE certified and is backed by a comprehensive 1-year manufacturer warranty, providing complete peace of mind for your procurement investments.

FAQ

To assist your procurement and engineering teams in making an informed decision, we have compiled answers to the most common inquiries regarding our industrial vision lenses.

• What is the minimum order quantity (MOQ) for this vision lens?

  We maintain a highly flexible supply chain, allowing for a Minimum Order Quantity (MOQ) of just 1 piece. This is ideal for engineering teams looking to test and validate the optic in their specific machine vision setup before committing to a larger volume rollout.

• Can the lens be customized to fit proprietary automated systems?

  Absolutely. We offer extensive OEM and ODM customization services. Depending on your operational requirements, our engineering team can modify the housing dimensions, adjust the optical coatings for specific wavelengths, or alter the mechanical interfaces to ensure a perfect fit for your proprietary equipment.

• What are the expected lead times for standard and customized orders?

  For our standard, off-the-shelf lenses, we typically process and dispatch orders within 3 to 5 working days. If your project requires bespoke customization, the engineering and production cycle generally takes between 7 and 10 working days, ensuring you receive tailored solutions without severe project delays.

• How does the lens perform in environments with heavy machinery vibration?

  It is specifically engineered for these harsh conditions. The lens features a ruggedized metal chassis and incorporates heavy-duty manual locking screws for both the aperture and focus rings. Once calibrated, these locks prevent any mechanical drift, ensuring the optical alignment remains perfectly stable despite continuous environmental vibrations.

• What kind of warranty and certification do these optics carry?

  We stand firmly behind the durability of our products by offering a comprehensive 1-year manufacturer warranty, covering any defects in materials or workmanship. Furthermore, all our industrial lenses are fully CE certified, guaranteeing compliance with stringent international safety and performance standards.
